50/DGL - SIDE MALE threaded "T" SWIVEL fitting from Ø 4 to Ø 8 - METAL quick couplings - Fittings - Ani (Pack of 10pcs)
Pagamento dilazionato solo per acquisti online

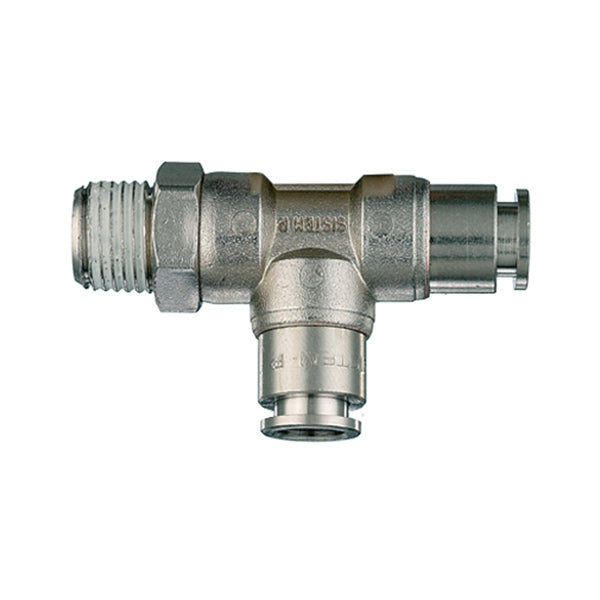

SIDE MALE THREADED “T” SWIVEL CONNECTOR
Series 50 – Metal Quick Connect Fittings - ISO 7 Conical Male (BSPT) -DIN 2999
BS 21 with PTFE
| 50/DGL - SIDE MALE from Ø 4 to Ø 8 |
|---|
|
| Code | Mod. | TO | B | C | D | AND | F | G |  |
|---|---|---|---|---|---|---|---|---|---|
| AH037515 | 50/DGL | 1/8M | Ø 4 | 23 | 8 | 20 | 10 | 12.2 | 11 |
| AH037516 | 50/DGL | 1/8M | Ø 6 | 25 | 8 | 23 | 13 | 13.4 | 12 |
| AH037513 | 50/DGL | 1/4M | Ø 6 | 27 | 10 | 23 | 13 | 15.5 | 14 |
| AH037511 | 50/DGL | 1/8M | Ø 8 | 26 | 8 | 25.5 | 15 | 17.9 | 16 |
| AH037514 | 50/DGL | 1/4M | Ø 8 | 28 | 10 | 25.5 | 15 | 17.9 | 16 |
FIELDS OF USE : Pneumatic circuits.
OPERATING PRESSURE : The maximum operating pressure is determined by the characteristics of the tube used. Maximum pressure 16 bar (1.6 MPa)
WORKING TEMPERATURE : -10°C (263°K) ÷ +80°C (353°K). • TYPES OF CONNECTABLE HOSES: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0.05 (ø 4÷ø10) - ±0.1 (ø12 ÷ ø 14).
MATERIALS USED : Nickel-plated brass (UNI EN 12164 CW 614N), ZAMA-15
Nickel plated (UNI EN 1774:99).
O-RINGS/SEALS : Silicone-free NBR oil-resistant rubber seals
THREAD : Conical gas with PTFE (ISO 7 (BSPT) -DIN 2999 - BS 21),
Gas cylindrical - ISO 228 (BSPP)
The products comply with Directive 2002/95/EC - RoHS Directive.
