E/10 MIGNON - modular filter

Name: E/10 MIGNON - modular filter
Brand: ANI
SKU: AH116702
Price: 55.77 EUR
Availability: InStock
Rating: 5.0 (10 reviews)

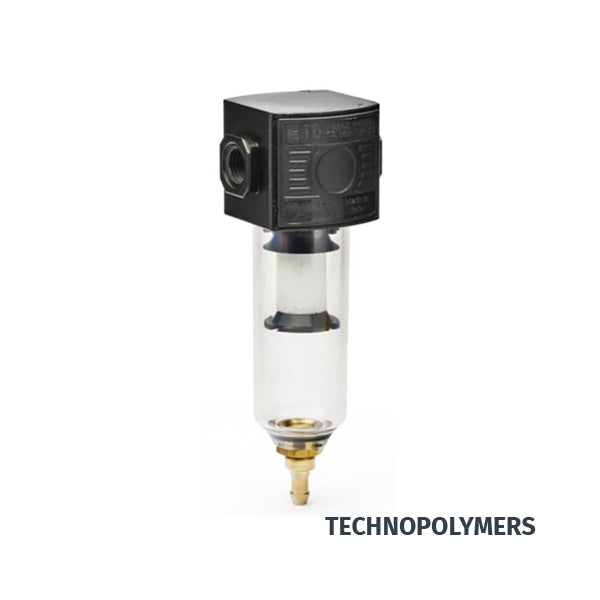

The E/10 Mignon modular filter is specifically designed for the removal of liquid and solid impurities in pneumatic systems. Equipped with a 40 µ polyethylene (PE) filter cartridge, with optional 5 µ or 20 µ, it ensures effective condensate separation thanks to the integrated baffle and air conveyor. The bowl, available in technopolymer or metal, features a quick-connect system and a capacity of 20 cm³, with semi-automatic or manual drain options and a connection for drainage hose. The E/10 Mignon variants, with 1/8" and 1/4" BSP connections, stand out for their versatility and precision, perfectly adapting to the needs of complex pneumatic systems.

Filtri medium, Filtro, Lubrificatore, modulare

Product SKU: AH116702

Wishlist Compare

€55,77

(IVA/VAT incl.)

Pagamento dilazionato solo per acquisti online

Want it delivered by

Description
Specifications

E/10 MIGNON - modular filter

E/10 MINI

These modular filters have been designed to remove
liquid and solid impurities in pneumatic systems.
40 µ PE filter cartridge (5 µ or 20 µ on request)

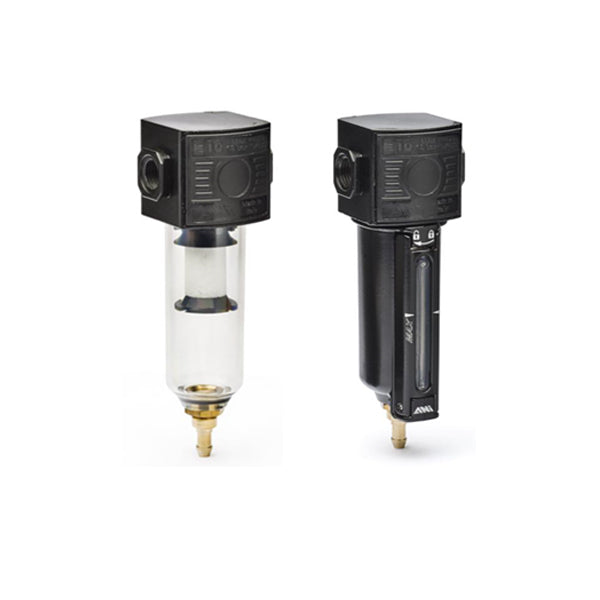

Glass with quick coupling in technopolymer or metal
with a capacity of 20 cm3.
Semi-automatic and manual unloading device on request.
Complete with connection for drainage pipe connection.
Deflector and air conveyor for effective separation
of condensation.

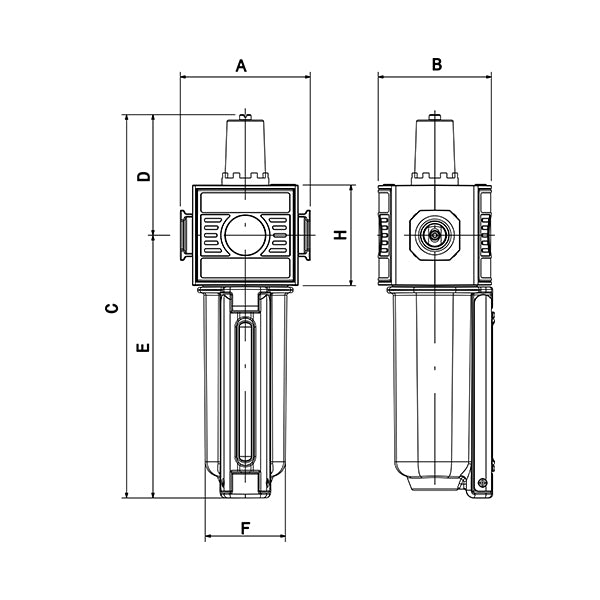

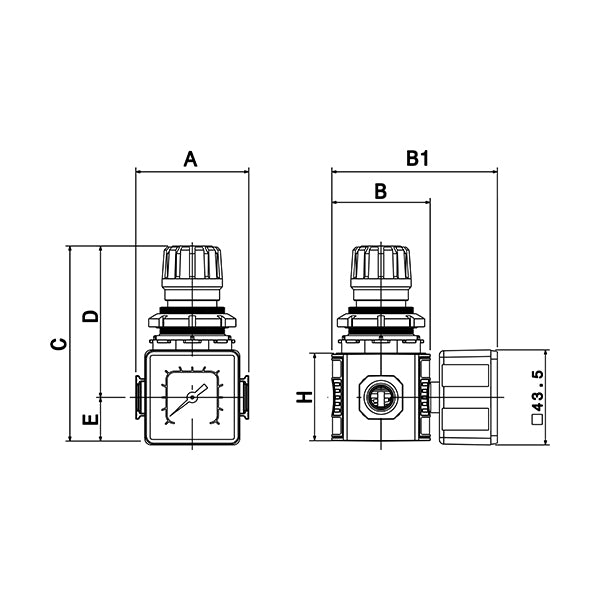

COD.	MOD.	F	TO	B	C	D	AND	F	G	H
AH116101	E/10/1	1/8F BSP	52	45	142	20	122	32	21.5	40
AH116102	E/10/2	1/4F BSP	52	45	142	20	122	32	21.5	40
AH116103	E/10/1/P	1/8F BSP	52	45	143	20	123	32	21.5	40
AH116104	E/10/2/P	1/4F BSP	52	45	143	20	123	32	21.5	40

E/10 MIGNON - modular filter
