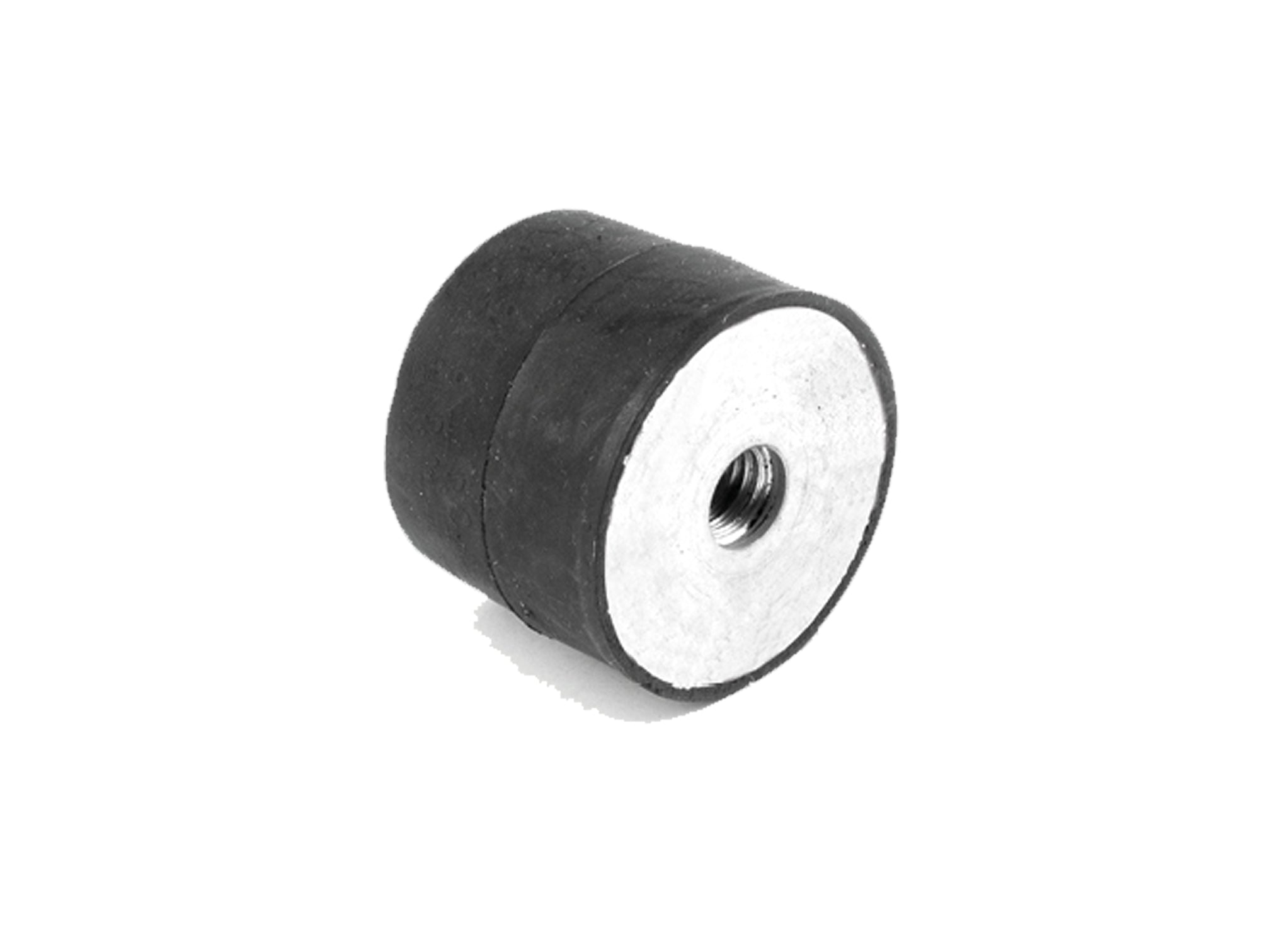

Cylindrical anti-vibration mount with blind hole Ø 15mm to 40mm from M4 to M10 - Model ACPF (Pack of 10 pcs) - Range
The ACPF model cylindrical anti-vibration mount, with galvanized steel bush and threaded blind hole, is made of black natural rubber with hardness 60±5 Shore A. Compliant with REACH and RoHS regulations, it is available in various sizes, with static compression loads ranging from 10 kg to 85 kg.
Product SKU: 7331100
€10,98
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
Cylindrical anti-vibration
Zinc plated steel socket and threaded blind hole
Material: Black natural rubber, hardness 60±5 Shore A.

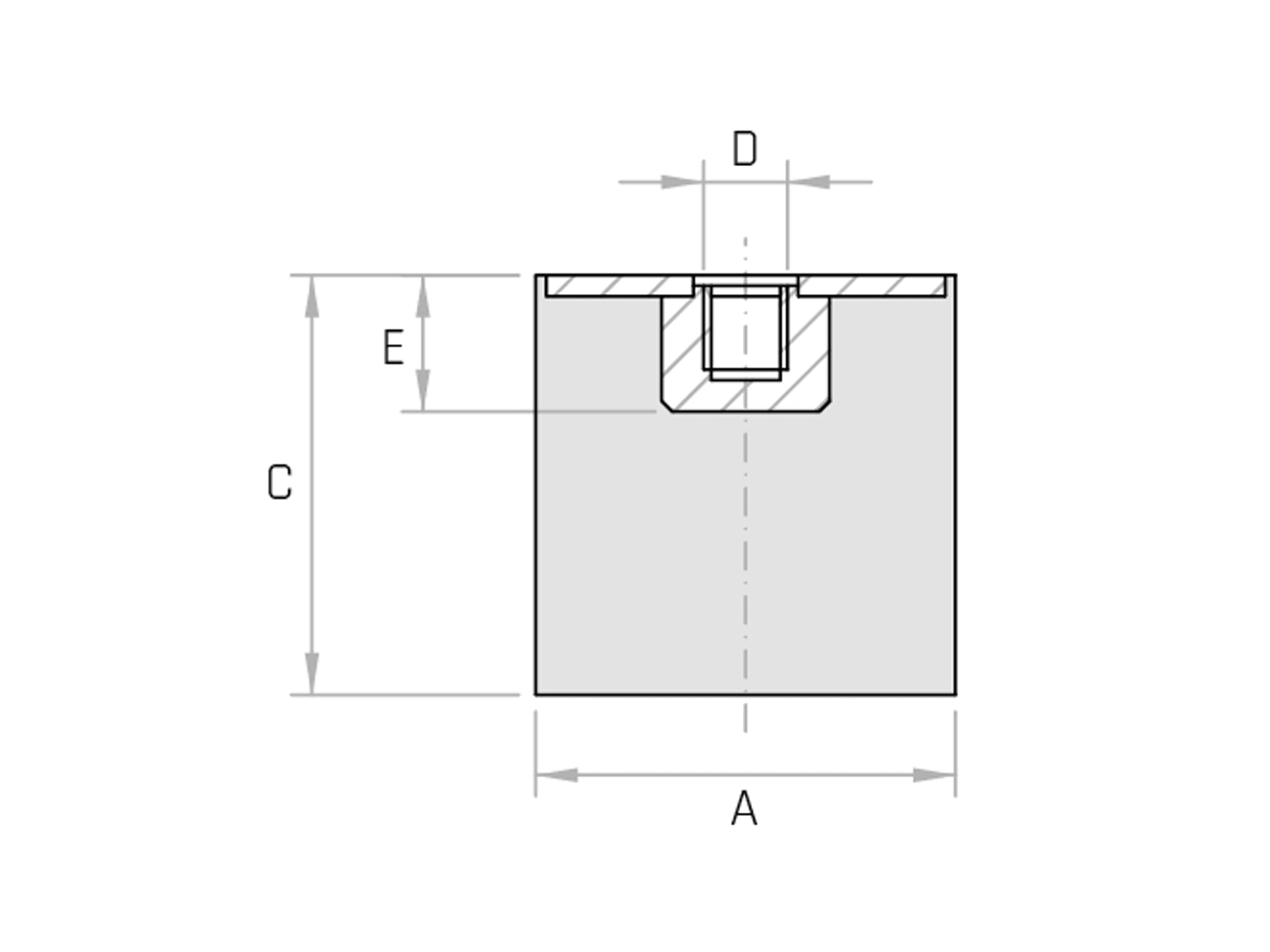

| Cylindrical anti-vibration mount with blind hole Ø 15mm to 40mm - Model ACPF |
|---|

|
| Code | Model | In mm | C mm | D | And mm | Static compression load (Kg) |
|---|---|---|---|---|---|---|
| 7331100 | ACPF/15x20 M4 | 15 | 20 | M4 | 4 | 10 |
| 7331104 | ACPF/20x10 M6 | 20 | 10 | M6 | 6 | 28 |
| 7331108 | ACPF/20X20 M6 | 20 | 20 | M6 | 6 | 20 |
| 7331112 | ACPF/20x30 M6 | 20 | 30 | M6 | 6 | 16 |
| 7331116 | ACPF/25x15 M6 | 25 | 15 | M6 | 6 | 35 |
| 7331120 | ACPF/25x25 M6 | 25 | 25 | M6 | 6 | 28 |
| 7331124 | ACPF/25x30 M6 | 25 | 30 | M6 | 6 | 27 |
| 7330939 | ACPF/30x15 M8 | 30 | 15 | M8 | 8 | 48 |
| 7330941 | ACPF/30x20 M8 | 30 | 20 | M8 | 8 | 40 |
| 7330942 | ACPF/30x25 M8 | 30 | 25 | M8 | 8 | 36 |
| 7330943 | ACPF/30x30 M8 | 30 | 30 | M8 | 8 | 31 |
| 7330944 | ACPF/40x20 M8 | 40 | 20 | M8 | 8 | 85 |
| 7330945 | ACPF/40x30 M6 | 40 | 30 | M6 | 6 | 75 |
| 7330947 | ACPF/40x30 M8 | 40 | 30 | M8 | 8 | 75 |
| 7330951 | ACPF/40x30 M10 | 40 | 30 | M10 | 10 | 75 |
| 7331140 | ACPF/40x40 M8 | 40 | 40 | M8 | 8 | 72 |
