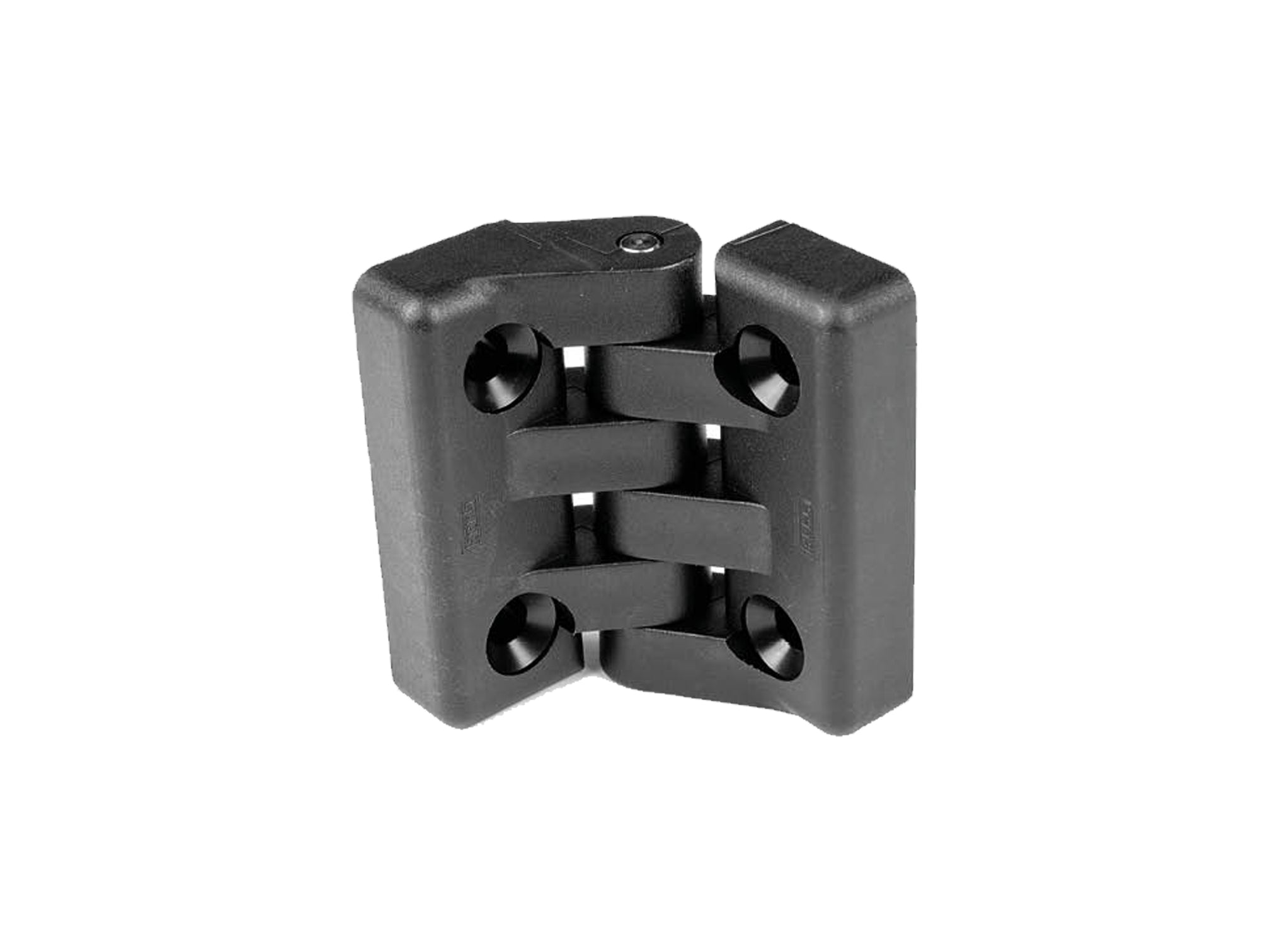

Smooth through hole hinge - C/A - Range
The C/A model smooth hole hinges are made of black reinforced polyamide with a matt finish and an AISI 304 stainless steel pin. Compliant with REACH and RoHS regulations, these hinges are available in sizes from 32 mm to 98 mm (A x B) and offer a tightening torque range of up to 30 Nm. Weight varies from 9 g to 211 g, with screw holes of size from M4 to M10.
Product SKU: 6388005
€19,03
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
Smooth through hole hinge
Material
Reinforced black polyamide, matt finish. AISI 304 stainless steel pin.
| C/A - Smooth hole hinge |
|---|

|

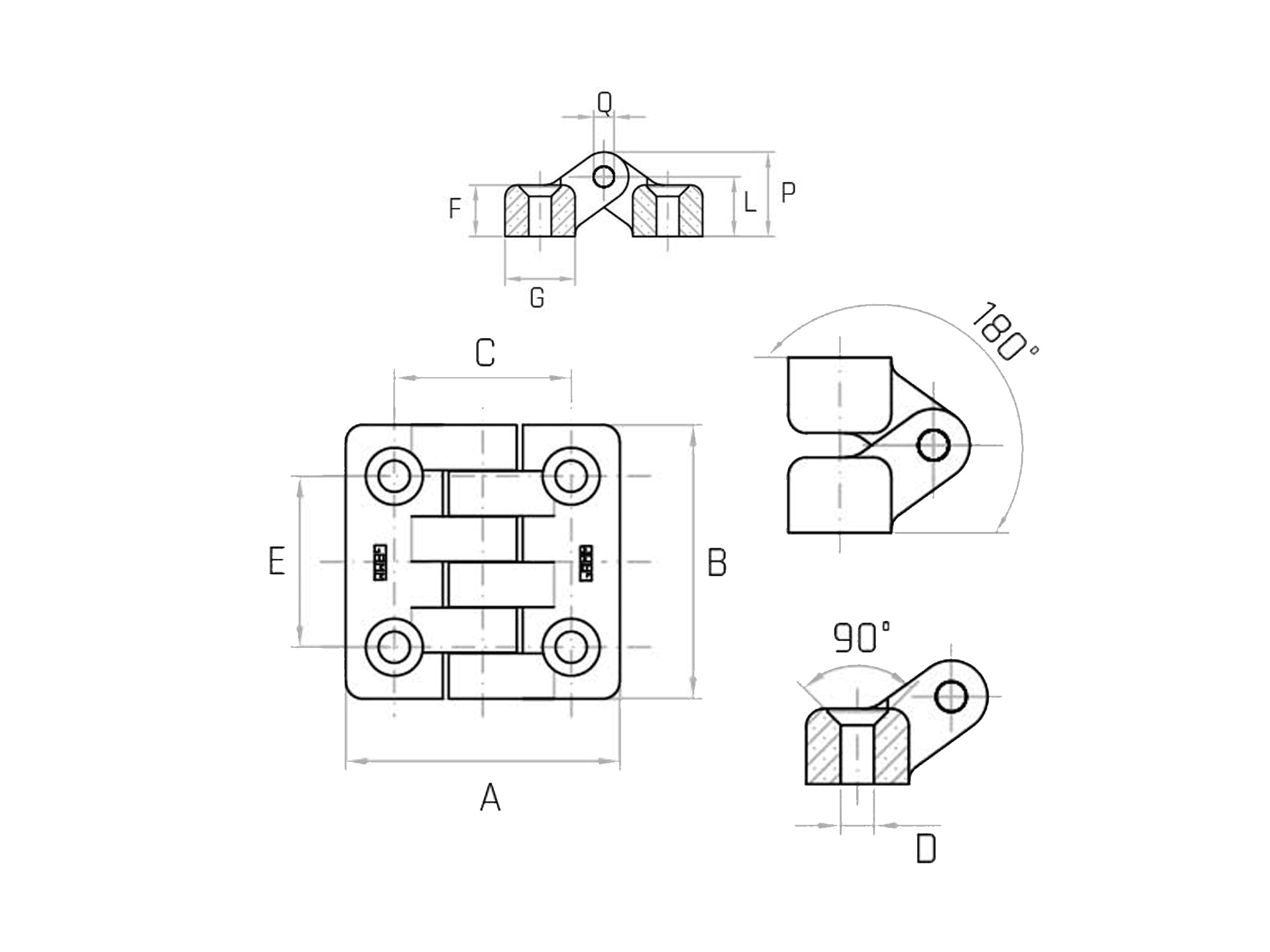

| Code | Model | In mm | B mm | C mm | And mm | F mm | G mm | The mm | P mm | Q mm | D | Screw | CC Nm | Weight gr. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6388005 | C32/A Ø4,2 | 32 | 32 | 20 | 20 | 7 | 12 | 8.5 | 12.5 | 3 | Ø4,2 | M4 | 2 | 9 |
| 6388010 | C40/A Ø4,2 | 40 | 40 | 25.5 | 25.5 | 10 | 14 | 11.5 | 16.5 | 4 | Ø4,2 | M4 | 2 | 19 |
| 6388020 | C48/A Ø5,5 | 48 | 48 | 31 | 30 | 12.5 | 17 | 14.5 | 20.5 | 5 | Ø5,5 | M5 | 5 | 33 |
| 6388030 | C65/A Ø6.5 | 65 | 65 | 40 | 40 | 14 | 24 | 17 | 25 | 6 | Ø6,5 | M6 | 10 | 65 |
| 6388040 | C98/A Ø10,5 | 98 | 98 | 63 | 60 | 21 | 35 | 25 | 37 | 8 | Ø10,5 | M10 | 30 | 211 |
