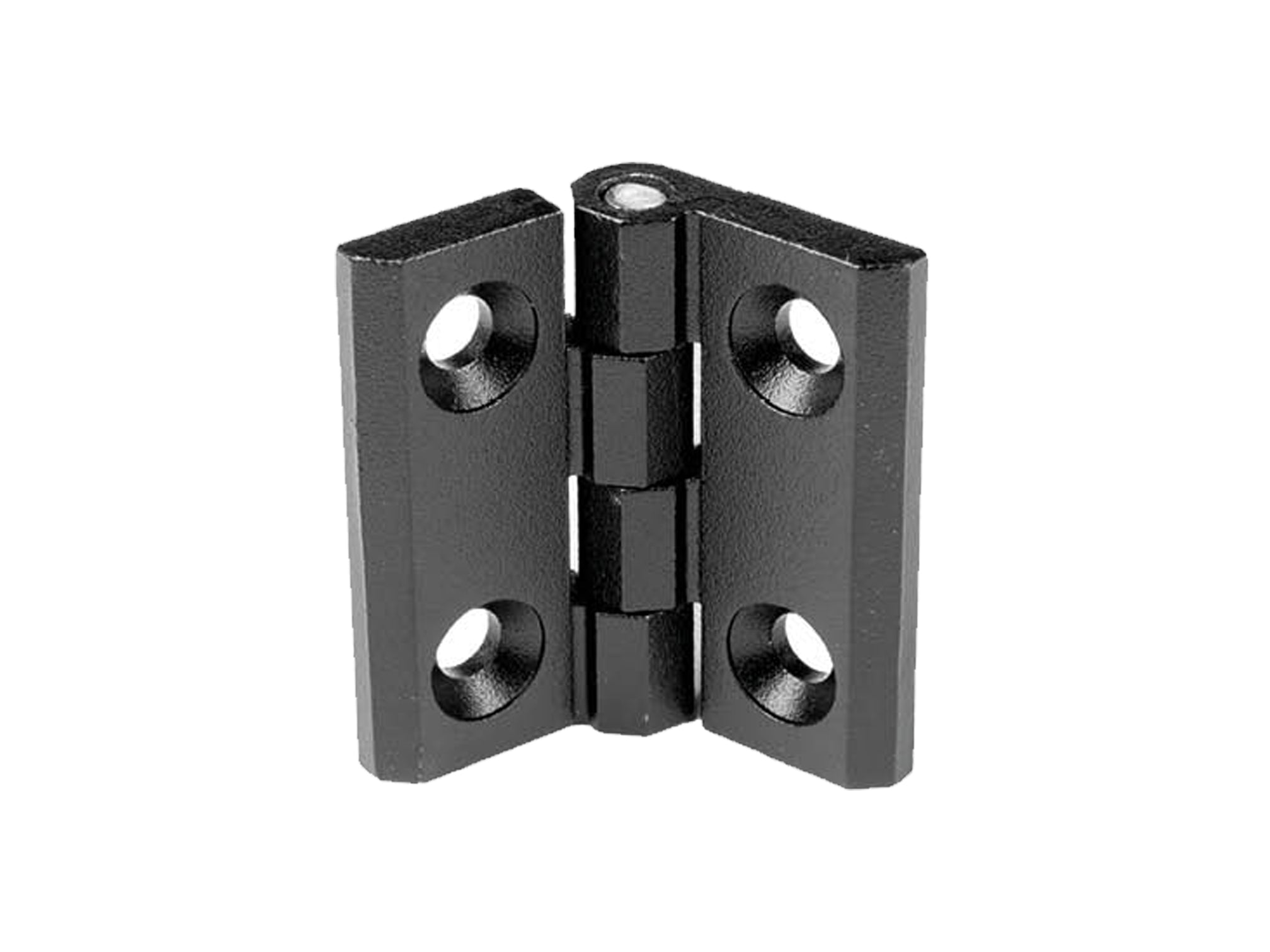

Flat hinge through hole ZAMA black - CZN/A - Range
The flat hinges with smooth through hole, model CZN/A, are made of black zama with a polished finish and a pin in AISI 304 stainless steel. Compliant with REACH and RoHS regulations, these hinges are available in sizes from 40 mm to 60 mm (A x B) and weigh between 50 g and 162 g. The screw holes have diameters from Ø5.2 mm to Ø8.4 mm.
Product SKU: 7748005
€8,52
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
Flat hinge f gold smooth pass through
Material
Black zama , polished finish. Pin in AISI 304 stainless steel.

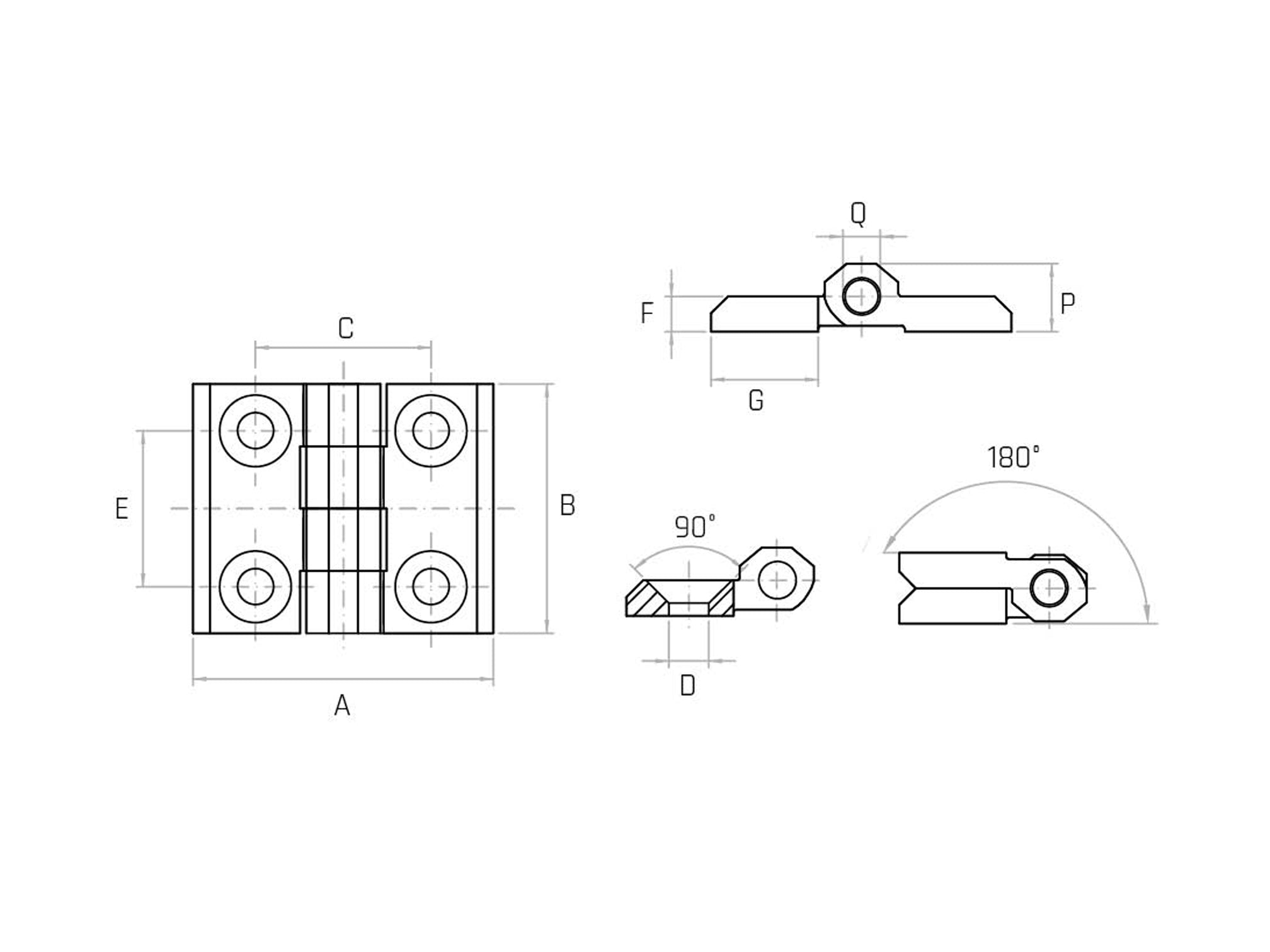

| CZN/A - Flat hinge with through hole, black ZAMA |
|---|

|
| Code | Model | In mm | B mm | C mm | And mm | F mm | G mm | P mm | Q mm | D mm | Weight gr. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7748005 | CZN40/A | 40 | 40 | 25 | 25 | 5 | 14 | 9 | 4 | Ø5,2 | 50 |
| 7748010 | CZN50/A | 50 | 50 | 30 | 30 | 6 | 18 | 11 | 6 | Ø6,3 | 80 |
| 7748015 | CZN60/A | 60 | 60 | 36 | 36 | 8 | 21 | 15 | 8 | Ø8,4 | 162 |
