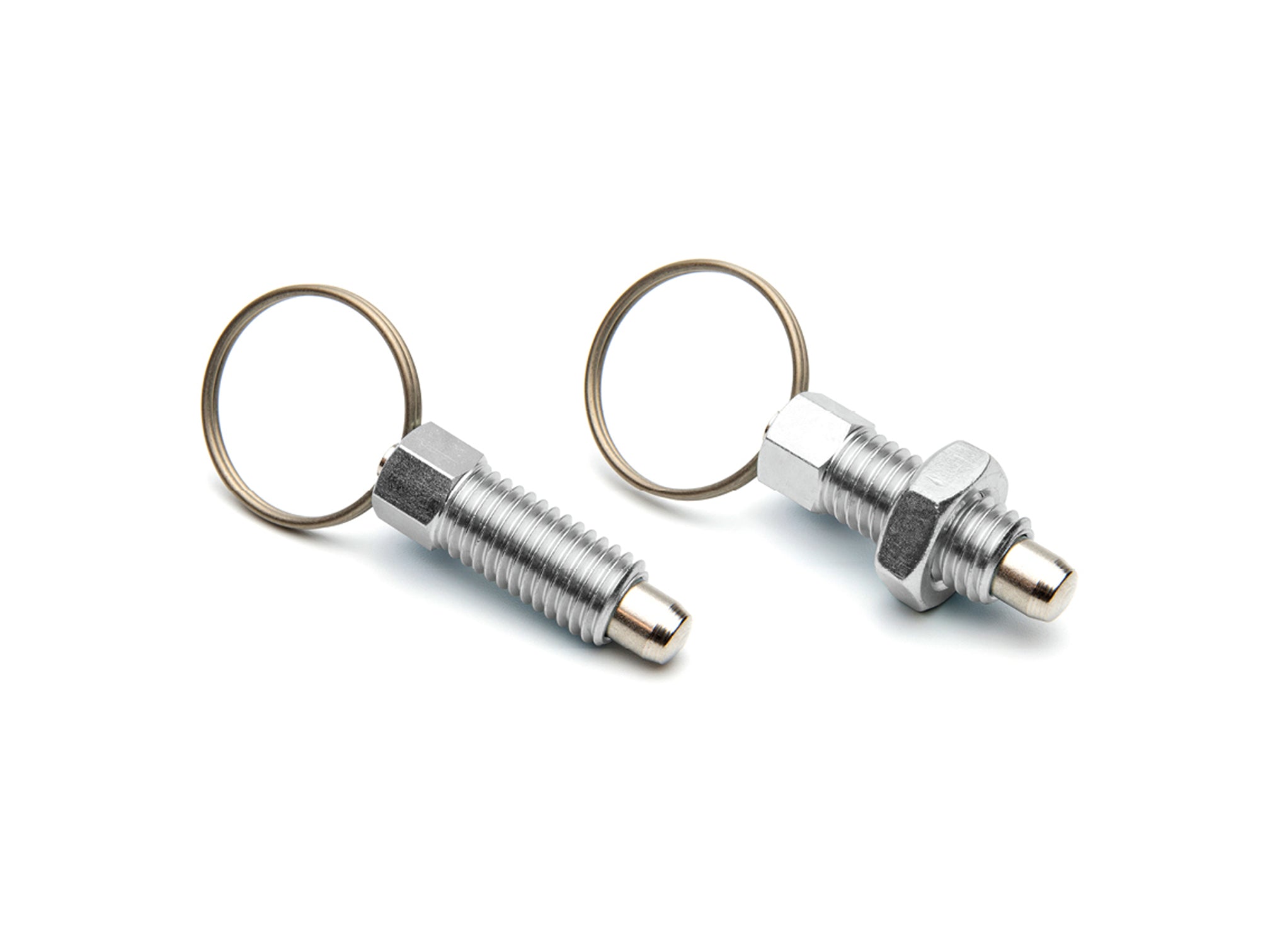

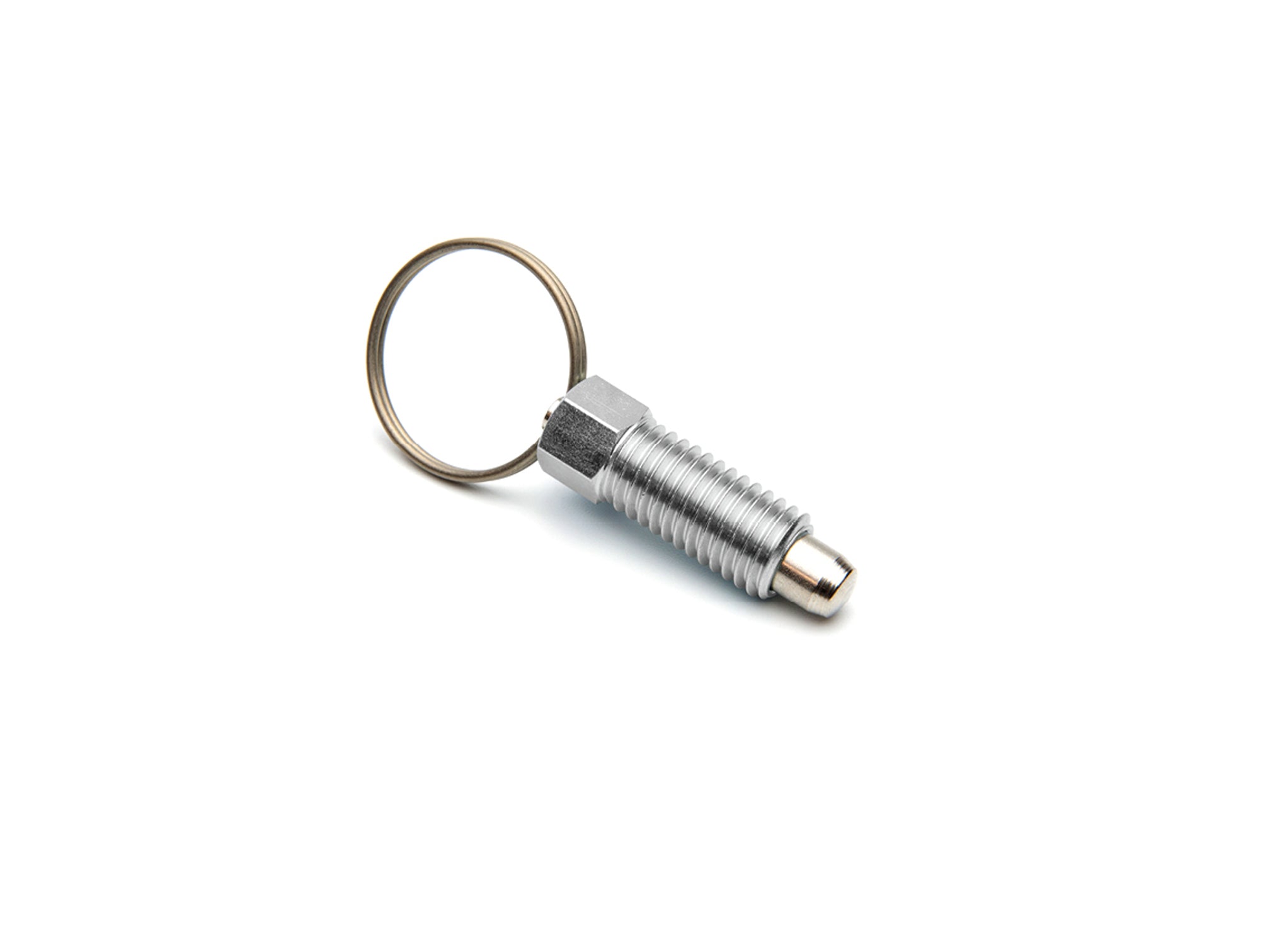

Spring plunger with galvanized steel body - model PSDA and PSDA/C - Range
The PSDA and PSDA/C spring plungers feature a zinc-plated steel body with a ring, tip and spring in AISI 303 stainless steel. Available in models with threads from M6 to M12 and sizes from 14 mm to 30 mm in diameter. The PSDA/C version includes a zinc-plated steel lock nut. These components comply with REACH and RoHS regulations, with weights ranging from 3.3 g to 39.5 g.
Product SKU: 6394105
€5,78
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
Pistons and pressers
Material
Body in galvanized steel. Ring, tip and spring in AISI 303 stainless steel.
| PSDA and PSDA/C - Spring plunger with zinc-plated steel body |
|---|

|

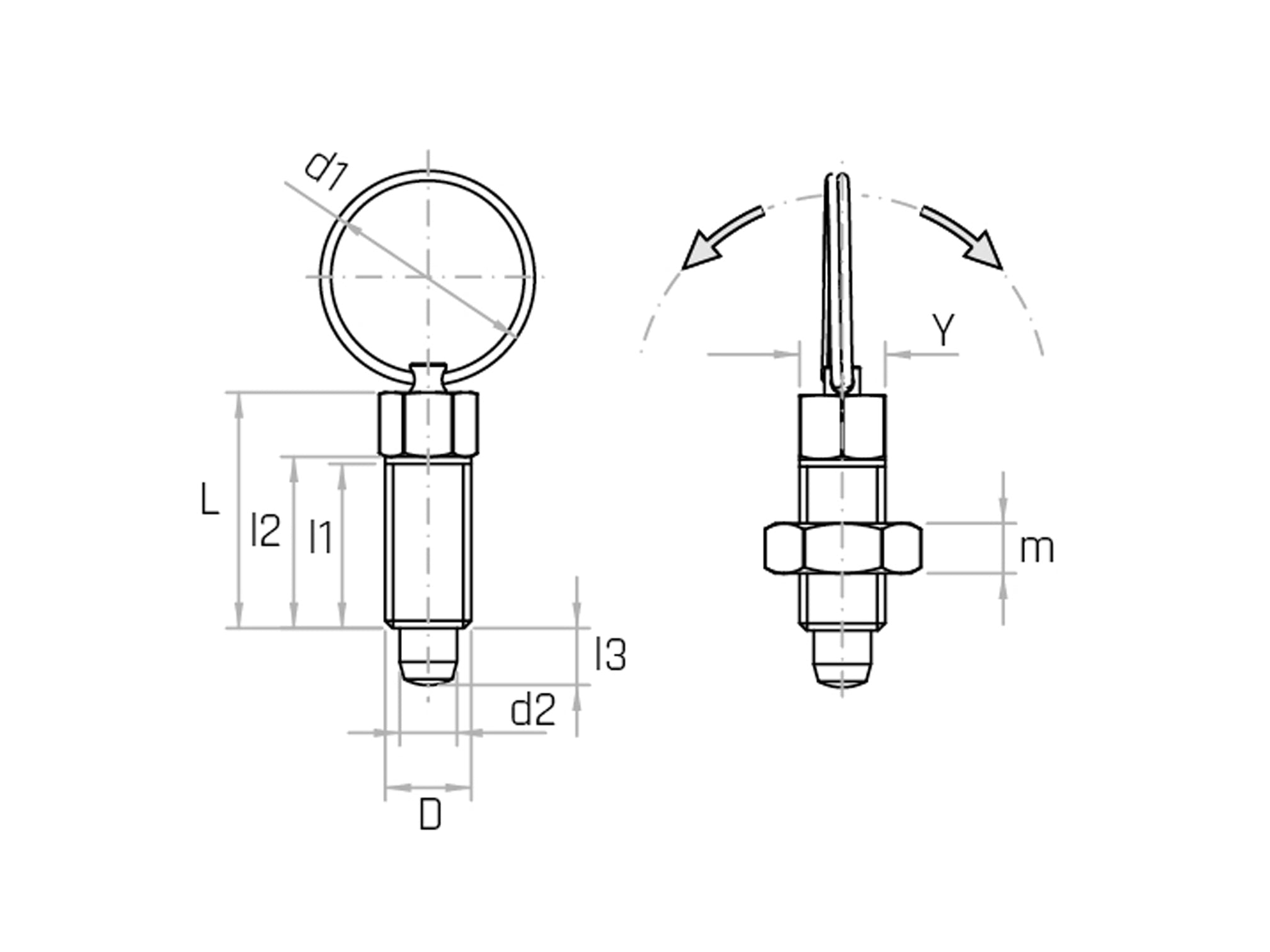

| Code | Model | d1 mm | D | The mm | l1 mm | l2 mm | l3 mm | d2 mm | Y mm | m mm | Weight gr. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6394105 | PSDA/14 | 14 | M6 | 16.5 | 11 | 12 | 4 | 4 | 6 | - | 3.3 |
| 6394110 | PSDA/18 | 18 | M8 | 22 | 15 | 16 | 5 | 5 | 8 | - | 7.6 |
| 6394115 | PSDA/24 | 24 | M10 | 27.5 | 19 | 20 | 6 | 6 | 10 | - | 16.7 |
| 6394120 | PSDA/30 | 30 | M12 | 33 | 23 | 24 | 8 | 8 | 12 | - | 29.0 |
| 6394106 | PSDA/14/C | 14 | M6 | 16.5 | 11 | 12 | 4 | 4 | 6 | 4 | 5.0 |
| 6394111 | PSDA/18/C | 18 | M8 | 22 | 15 | 16 | 5 | 5 | 8 | 5 | 11.2 |
| 6394116 | PSDA/24/C | 24 | M10 | 27.5 | 19 | 20 | 6 | 6 | 10 | 6 | 24.0 |
| 6394121 | PSDA/30/C | 30 | M12 | 33 | 23 | 24 | 8 | 8 | 12 | 7 | 39.5 |

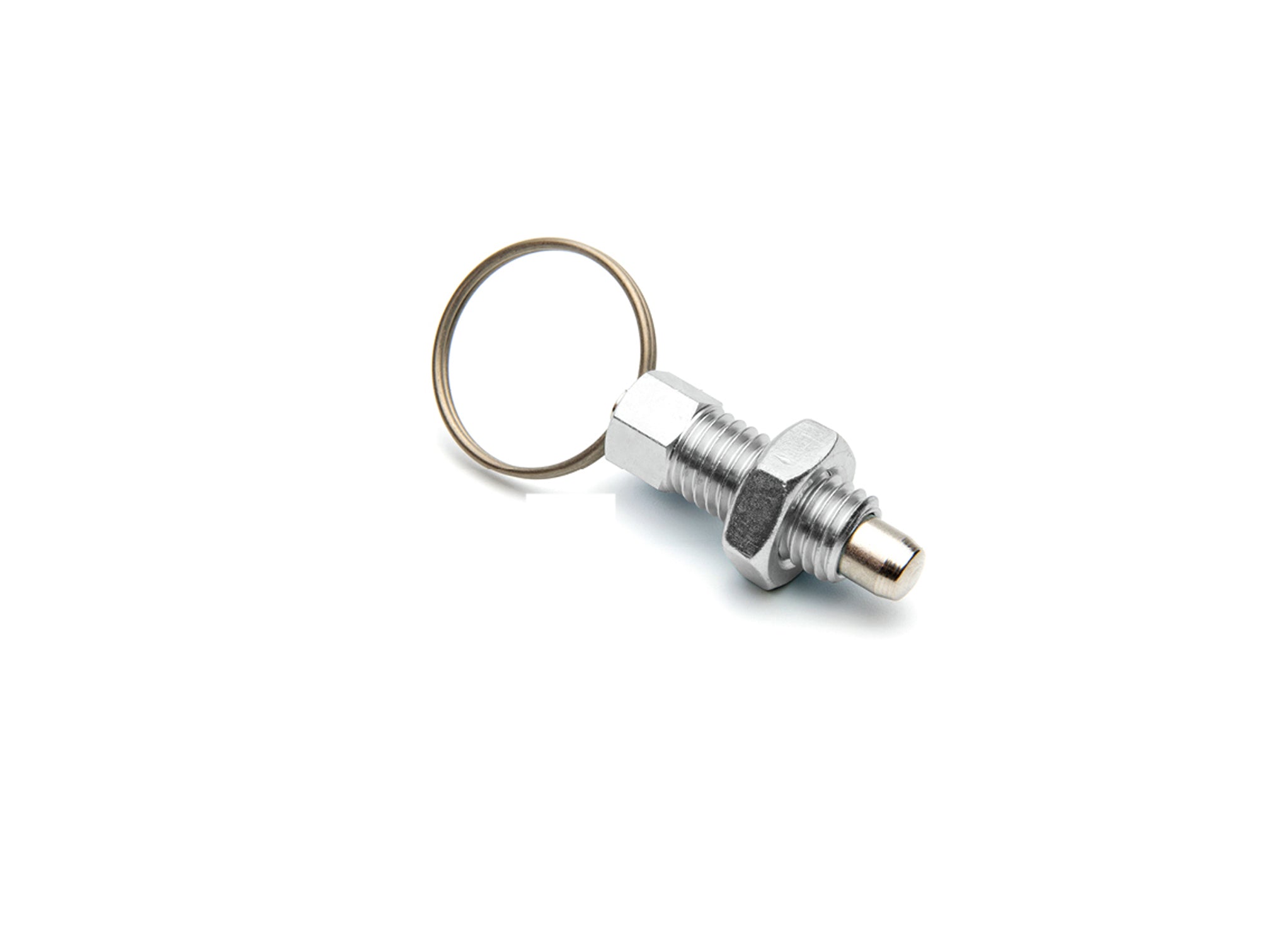

NOTE : Version C with zinc-plated steel lock nut.
