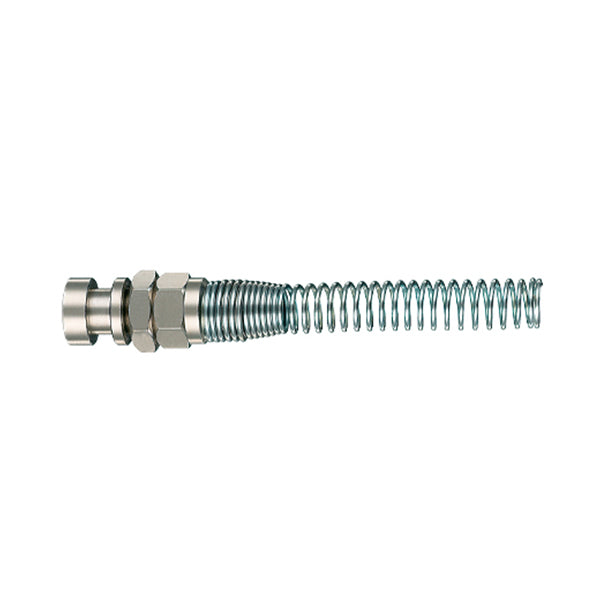

BAYONET ATTACHMENT WITH SPRING
Universal automatic tap with spring • Bayonet head • MF = Fixed
| 60/MF - BAYONET |
|---|
| Code | Mod. | Of X Of | f | THE | L1 |  |
 |
|---|---|---|---|---|---|---|---|
| AH034015 | 60/MF | Ø 4 x 6 | Ø 3 | 77 | 52 | 13 | 14 |
| AH034003 | 60/MF | Ø 5 x 8 | Ø 3 | 95 | 70 | 13 | 14 |
| AH034001 | 60/MF | Ø 6 x 8 | Ø 4.5 | 95 | 70 | 13 | 14 |
| AH034004 | 60/MF | Ø 6.5 x 10 | Ø 4.5 | 95 | 70 | 15 | 15 |
| AH034009 | 60/MF | Ø 8 x 10 | Ø 4.5 | 95 | 70 | 13 | 15 |
| AH034005 | 60/MF | Ø 8 x 12 | Ø 4.5 | 117 | 92 | 13 | 17 |
| AH034010 | 60/MF | Ø 10 x 12 | Ø 4.5 | 117 | 92 | 15 | 17 |
FIELDS OF USE : Pneumatic, hydraulic and oleodynamic circuits.
CONNECTING TUBES : Plastic tubes in Polyurethane (PU) Polyethylene (PE) Polyamide (PA-PA11/12) - Polyester (PET) - BRAIDED PVC - PTFE – FEP….;
OPERATING PRESSURE : Maximum recommended pressure 18 bar.
TEMPERATURE : The temperature is determined by the characteristics of the tube used.
MATERIALS USED : Body/locking nut: Nickel-plated brass (UNI EN 12164 CW
614N).. Springs: C85 harmonic steel.
O-RINGS/SEALS : Silicone-free NBR oil-resistant rubber seals
SURFACE TREATMENT : Nickel plating
THREAD : Gas cylindrical - ISO 228 (BSPP)
