21/F - FEMALE INLET/OUTLET line tap - Taps and Valves - Fittings - Ani (Pack of 5 pieces)
Pagamento dilazionato solo per acquisti online

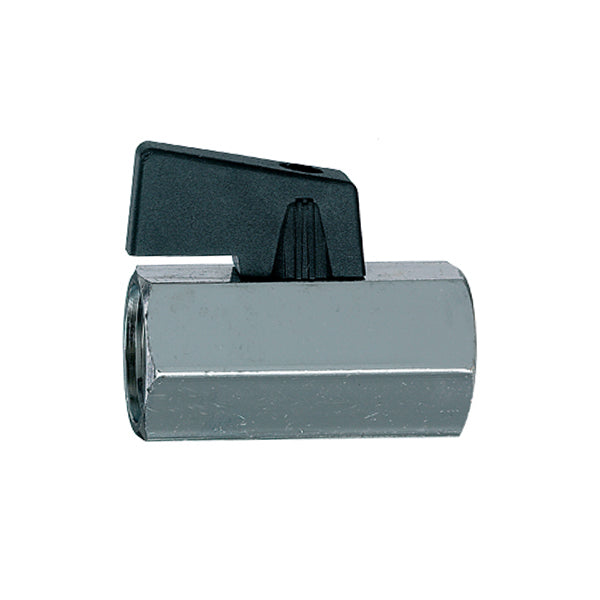

FEMALE INLET AND OUTLET LINE TAP
Gas cylindrical - ISO 228 (BSPP)

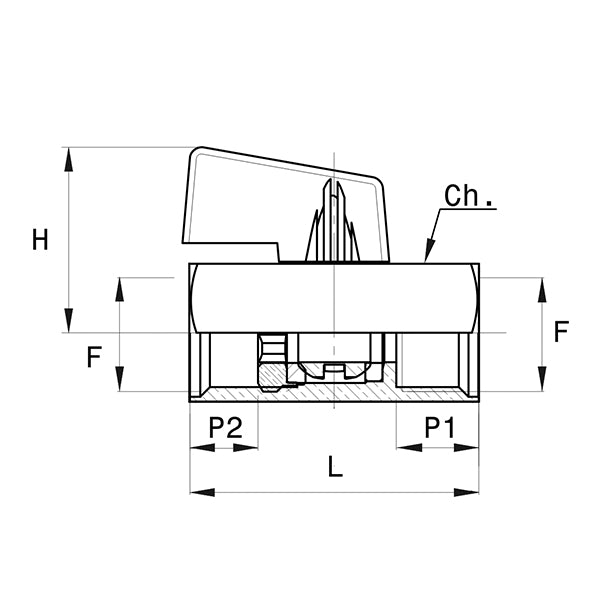

| 21/F - FEMALE |
|---|
 |
| Code | Mod. | F | P1 | P2 | THE | H |  |
|---|---|---|---|---|---|---|---|
| AH042501 | 21/F | 1/8 F | 9 | 10 | 39 | 27.2 | 20 |
| AH042502 | 21/F | 1/4 F | 9 | 10 | 39 | 27.2 | 20 |
| AH042503 | 21/F | 3/8 F | 12 | 10 | 42 | 27.2 | 20 |
| AH042504 | 21/F | 1/2 F | 12.3 | 11.7 | 47 | 29.5 | 24 |
FIELDS OF USE : Pneumatic, hydraulic and oleodynamic circuits.
DIRECTION OF PASSAGE : Reversible entrances
MANEUVER : 90° rotation of the lever
OPERATING PRESSURE : 0÷10 bar at 90°C
WORKING TEMPERATURE : Min. -10°C (263°K), Max. +90°C (363°K)
MATERIALS USED : Valve body: Chromed brass (CW614N UNI-EN 12164) Stem: Brass (CW614N UNI-EN 12164) Ring nut: Brass (CW614N UNI-EN 12164) Ball: Nickel-plated brass (CW614N UNI-EN 12164) Ball gaskets: PTFE G200 Stem sealing ring: OR NBR 70 Sh Lever: Glass-filled Nylon 66 Screw: Steel C4C UNI/EN 10263/03 Nut: Nickel-plated ZAMA-15 (UNI EN 1774:99)
SURFACE TREATMENT : Chrome plating
THREAD : Gas cylindrical - ISO 228 (BSPP)
