- HssPro TITANIUM metal drill bits - DIN338 - IRWIN HssPro TITANIUM metal drill bits - DIN338 - IRWIN
PROMO
HssPro TITANIUM metal drill bits - DIN338 - IRWIN
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
- Description
- Specifications
TWIST BITS FOR EXCEPTIONAL PERFORMANCE

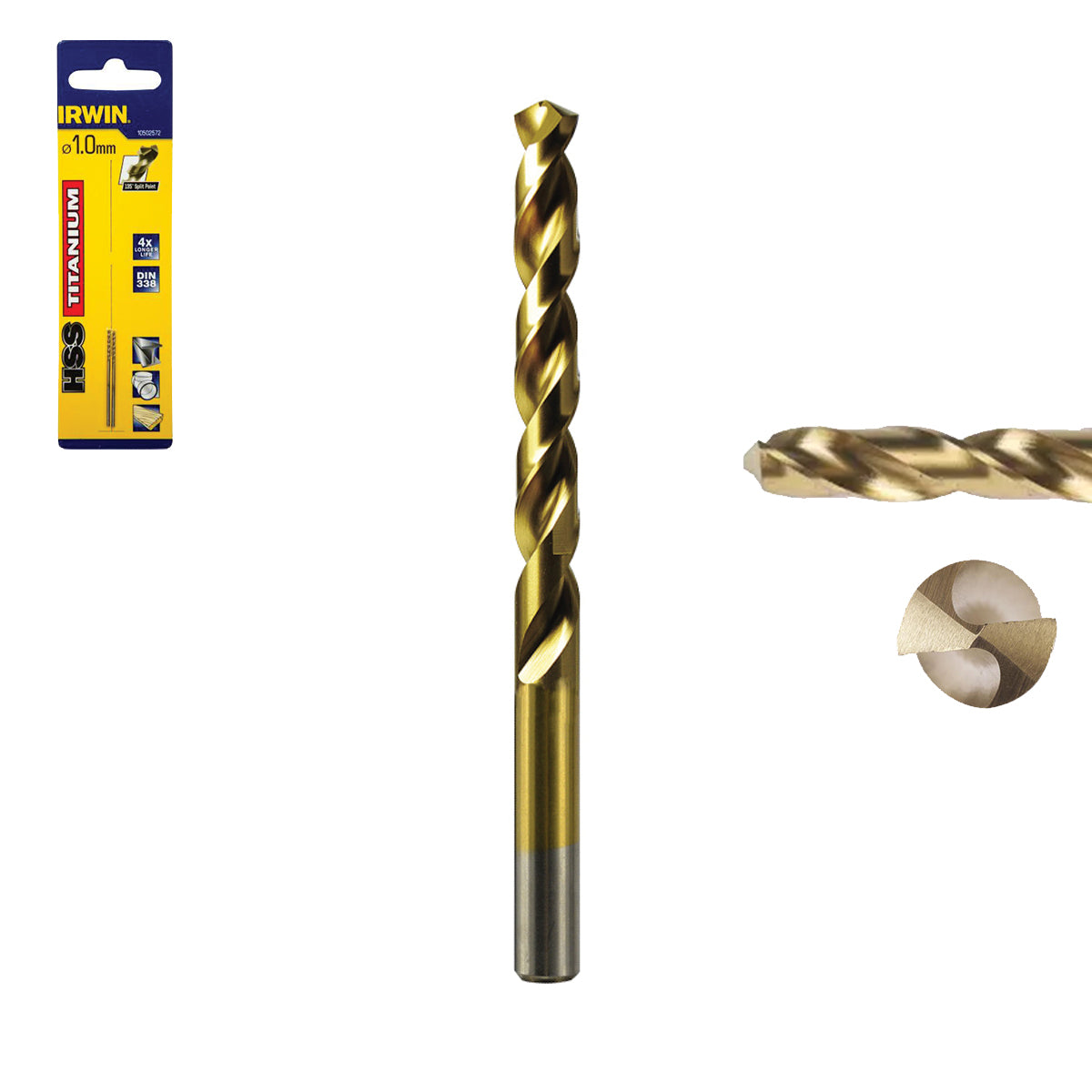

HSS PRO TITANIUM METAL BITS - DIN338 |
|
---|---|
Titanium Nitride Coated Tips for Exceptional Performance
These tips have been designed to deliver exceptional results thanks to a series of advanced features:
-
135° Split Point Grinding : Ensures perfect centering and reduced drilling pressure.
-
Industrial Leaf : Ensures high drilling precision and rapid chip removal.
-
High Quality Steel Body Coated with Titanium Nitride (TiN) : This coating resists heat and friction, providing a lifespan up to six times longer than standard metal bits. TiN has a hardness of approx. 80 HRC and is highly resistant to wear. In addition, TiN has a low coefficient of friction, which results in lower energy consumption and less heat generation during drilling.
-
Optimized Speed and Feed : Compared to traditional HSS twist drills, speed can be increased by 40-60% and feed by 10-20% without significantly reducing drill life.
-
Less Heat Generation : TiN is also a poor heat conductor, meaning that heat generated during the drilling process is diverted into the chips and coolant, thus reducing heating of the drill.

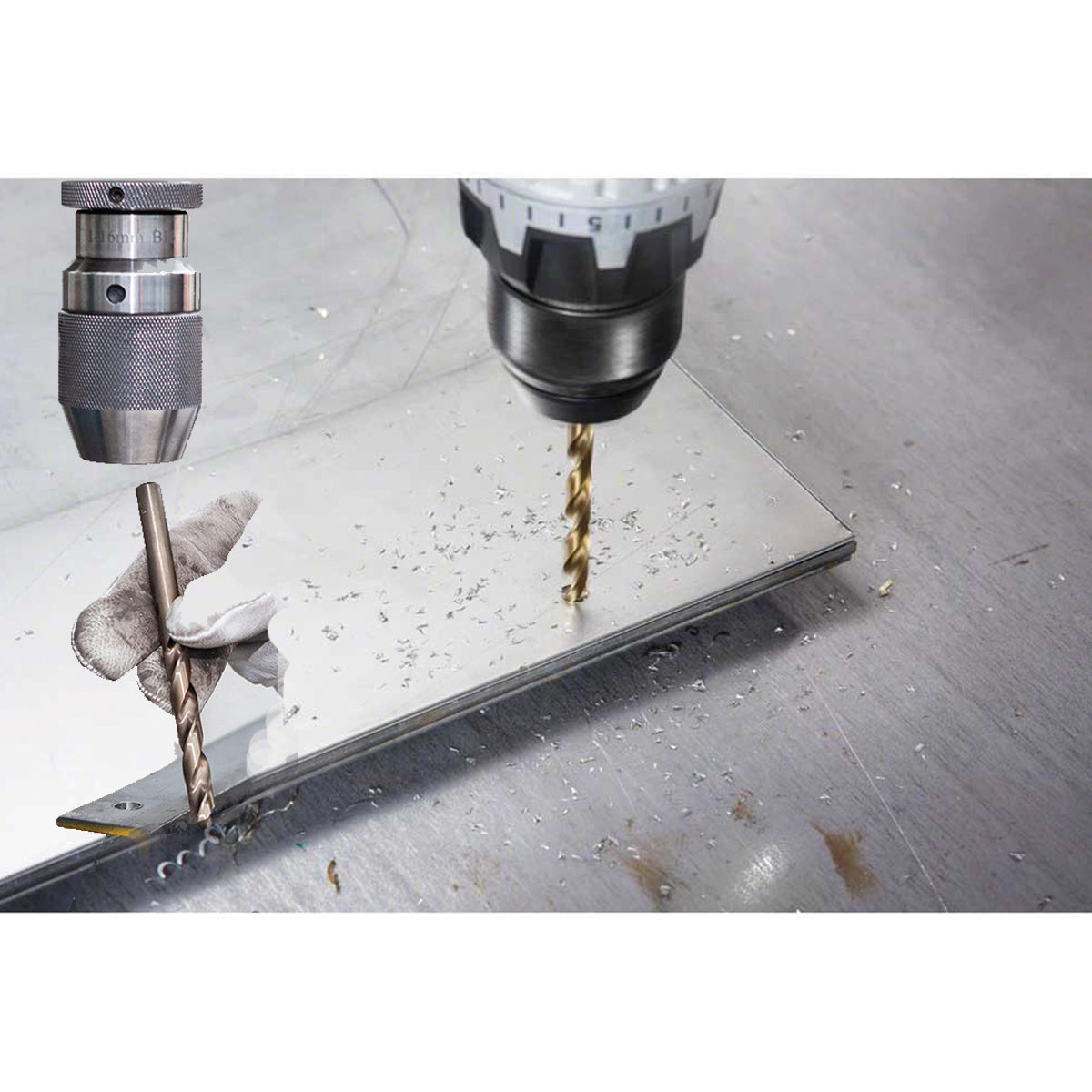

These titanium nitride coated bits are an ideal solution for repetitive metal drilling with portable drills and stationary drill presses. They last up to six times longer than standard high speed steel bits and hold their sharpness longer, making them an excellent option for industrial applications.
Code | Diameter (mm) | Operating length (mm) | Total length (mm) |
---|---|---|---|
10502572 | 1 |
12 |
34 |
10502573 | 1.5 |
18 |
40 |
10502574 | 2 |
24 |
49 |
10502575 | 2.5 |
30 |
57 |
10502576 | 3 |
33 |
61 |
10502580 | 3.5 |
39 |
70 |
10502581 | 4 |
43 | 75 |
10502583 | 4.2 |
43 |
75 |
10502585 | 4.5 |
47 |
80 |
10502588 | 5 |
52 |
86 |
10502590 | 5.5 |
57 |
93 |
10502591 | 6 |
57 |
93 |
10502592 | 6.5 |
63 |
101 |
10502593 | 7 |
69 |
109 |
10502594 | 7.5 |
69 |
109 |
10502595 | 8 |
75 |
117 |
10502596 | 8.5 |
75 |
117 |
10502597 | 9 |
81 |
125 |
10502598 | 9.5 |
81 |
125 |
10502599 | 10 |
87 |
133 |
10502600 | 11 |
94 |
142 |
10502601 | 12 |
101 |
151 |
10502602 | 13 |
101 |
151 |
