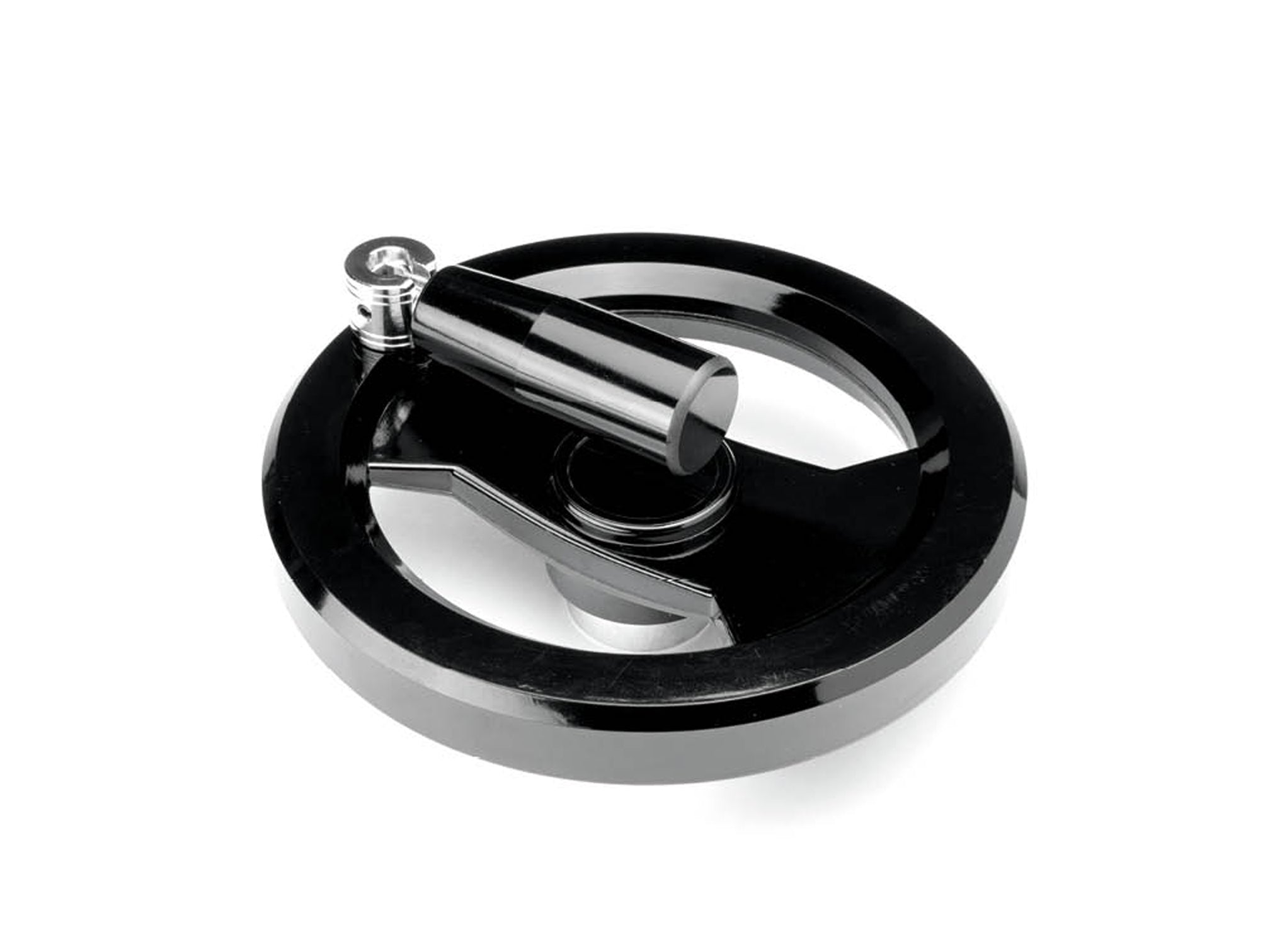

VR2F/MR Two-spoke handwheel with folding knob - Range
Operating handwheels with protruding hub in galvanized steel and snap-on folding knob, model VR2F/MR, made of black reinforced duroplast. Designed for special machining with the option of a blind hole that can be enlarged to size. Compliant with REACH and RoHS regulations, with high temperature resistance and folding functionality to optimize space and safety.
Product SKU: 6224002
€39,87
Pagamento dilazionato solo per acquisti online
Want it delivered by
Maneuvering handwheels
Protruding hub in galvanized steel. Snap-on folding rotating knob
Material
Black Reinforced Duroplast

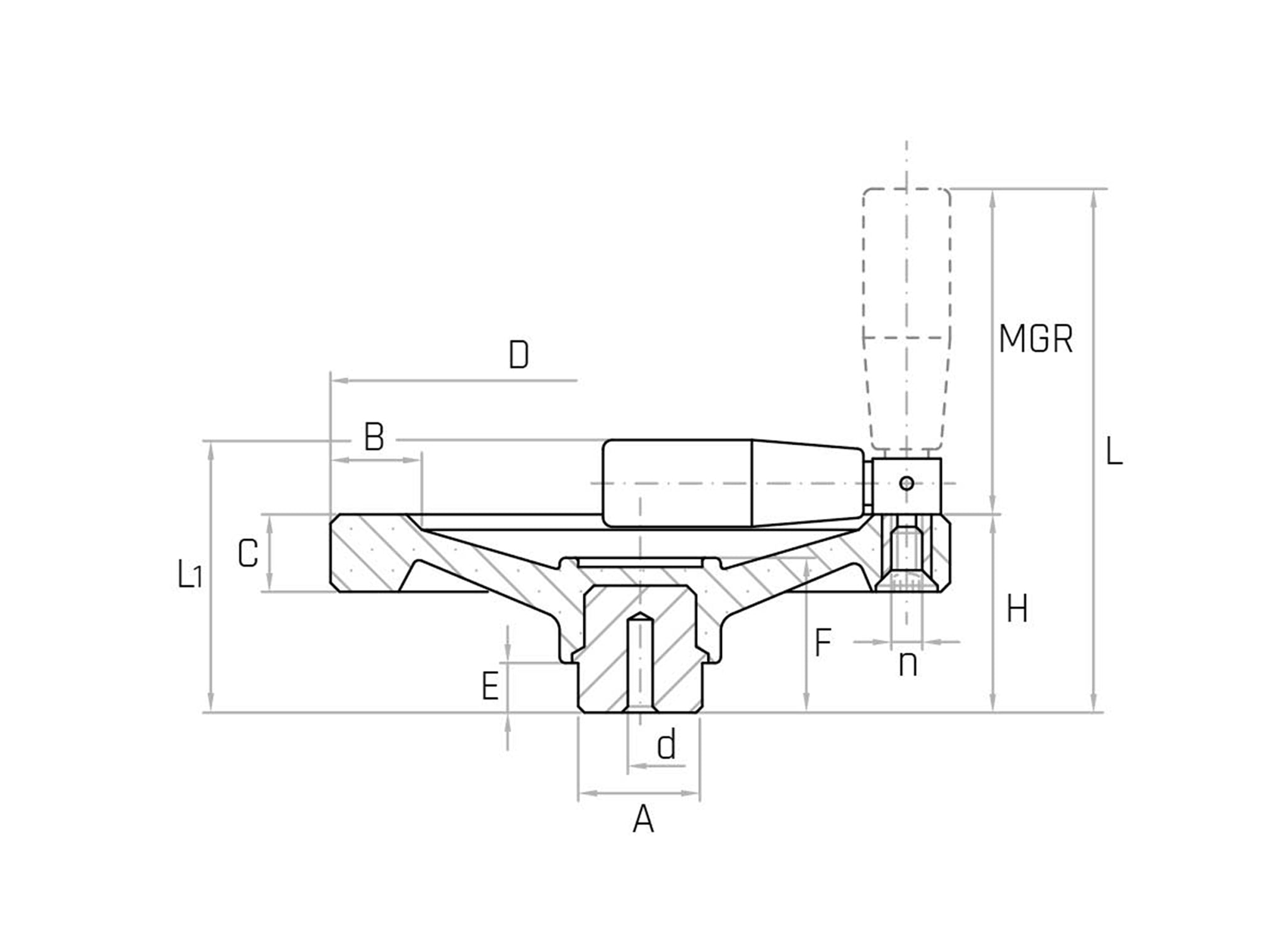

| VR2F/MR Two-spoke handwheel with folding knob |
|---|

|
| Cod. | Model | D mm | H mm | The mm | L1 mm | C mm | B mm | In mm | d mm | And mm | F mm | MGR mm | n |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6224002 | VR2F/125-MR | 125 | 41 | 112 | 61 | 16 | 18 | 24 | Ø4 | 11 | 34 | 23x55 | M5 |
| 6224005 | VR2F/150-MR | 150 | 46 | 128 | 67 | 20 | 21 | 32 | Ø6 | 13 | 38 | 25x65 | M6 |
| 6224010 | VR2F/200-MR | 200 | 62 | 167 | 86 | 25 | 26 | 40 | Ø6 | 16 | 45 | 28x85 | M6 |
| 6224015 | VR2F/250-MR | 250 | 70 | 175 | 94 | 28 | 30 | 48 | Ø8 | 17 | 50 | 28x85 | M6 |
NOTE :

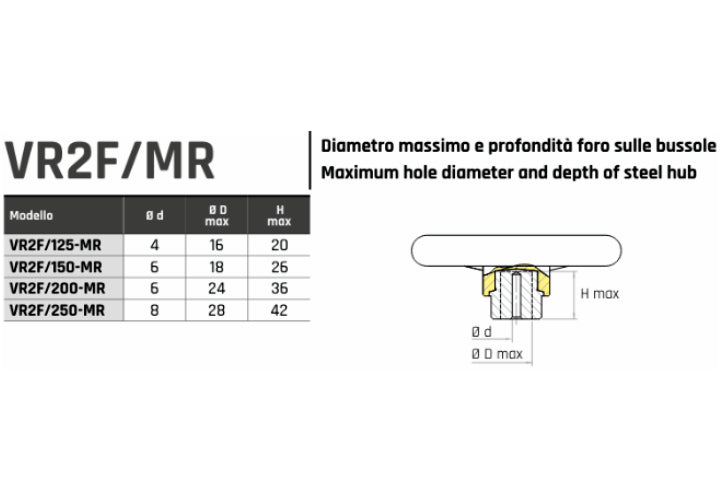

Blind hole that can be widened to the desired size. Handwheels with custom-drilled hubs are supplied for adequate quantities. The version with a snap-on revolving knob is recommended when, for reasons of space or safety, the knob must be folded back into the rest position.
