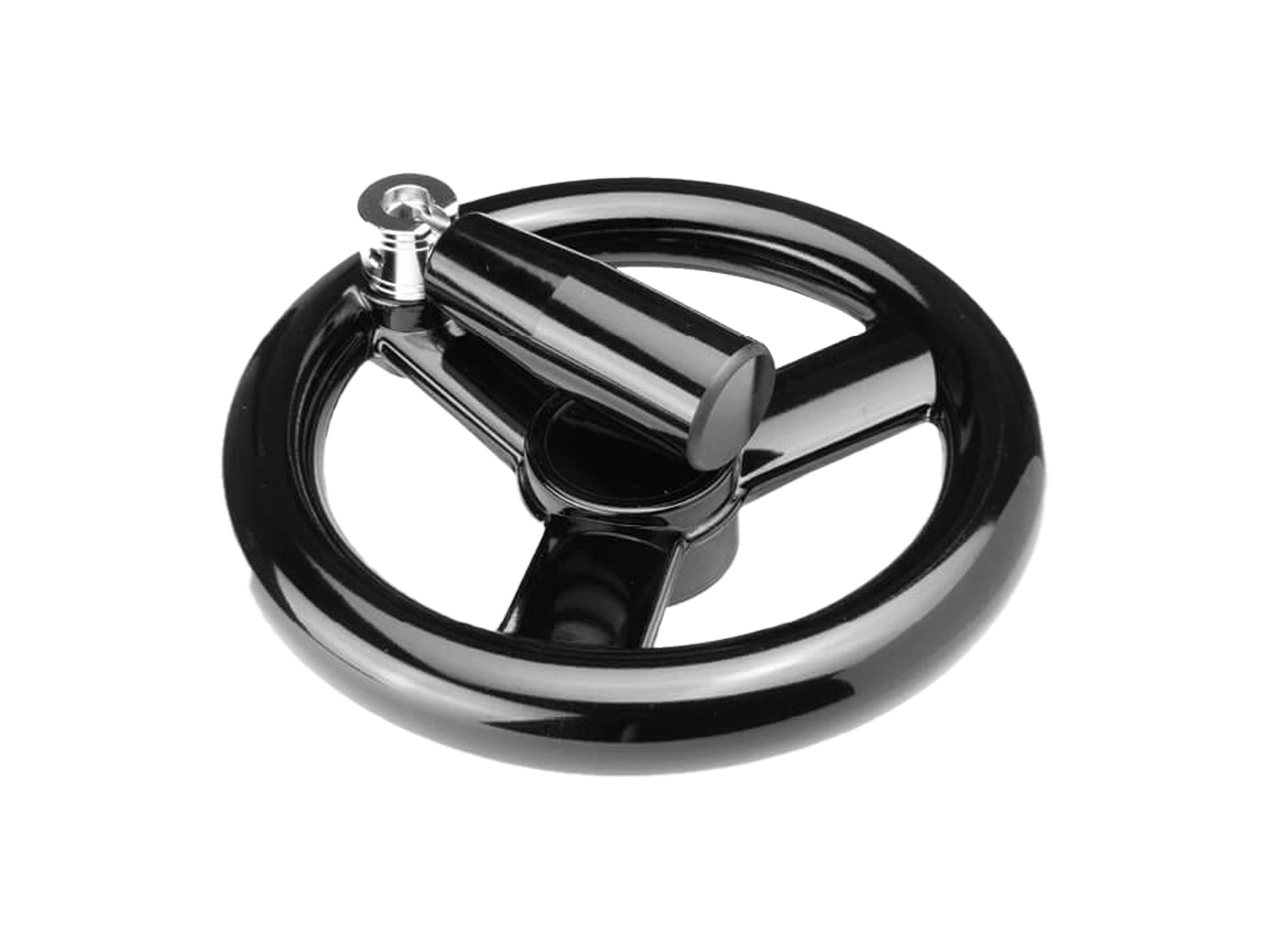

VRF/MF Three-spoke handwheel with folding knob - Range
VRF/MF control handwheels with protruding hub in galvanized steel and fold-down knob. Made of black reinforced duroplast, available in diameters from 125 mm to 300 mm, ideal for special machining and through holes.
Product SKU: 6222005
€42,22
Pagamento dilazionato solo per acquisti online
Want it delivered by
Maneuvering handwheels
Protruding hub in galvanized steel. Snap-on revolving knob.
Material
Black Reinforced Duroplast

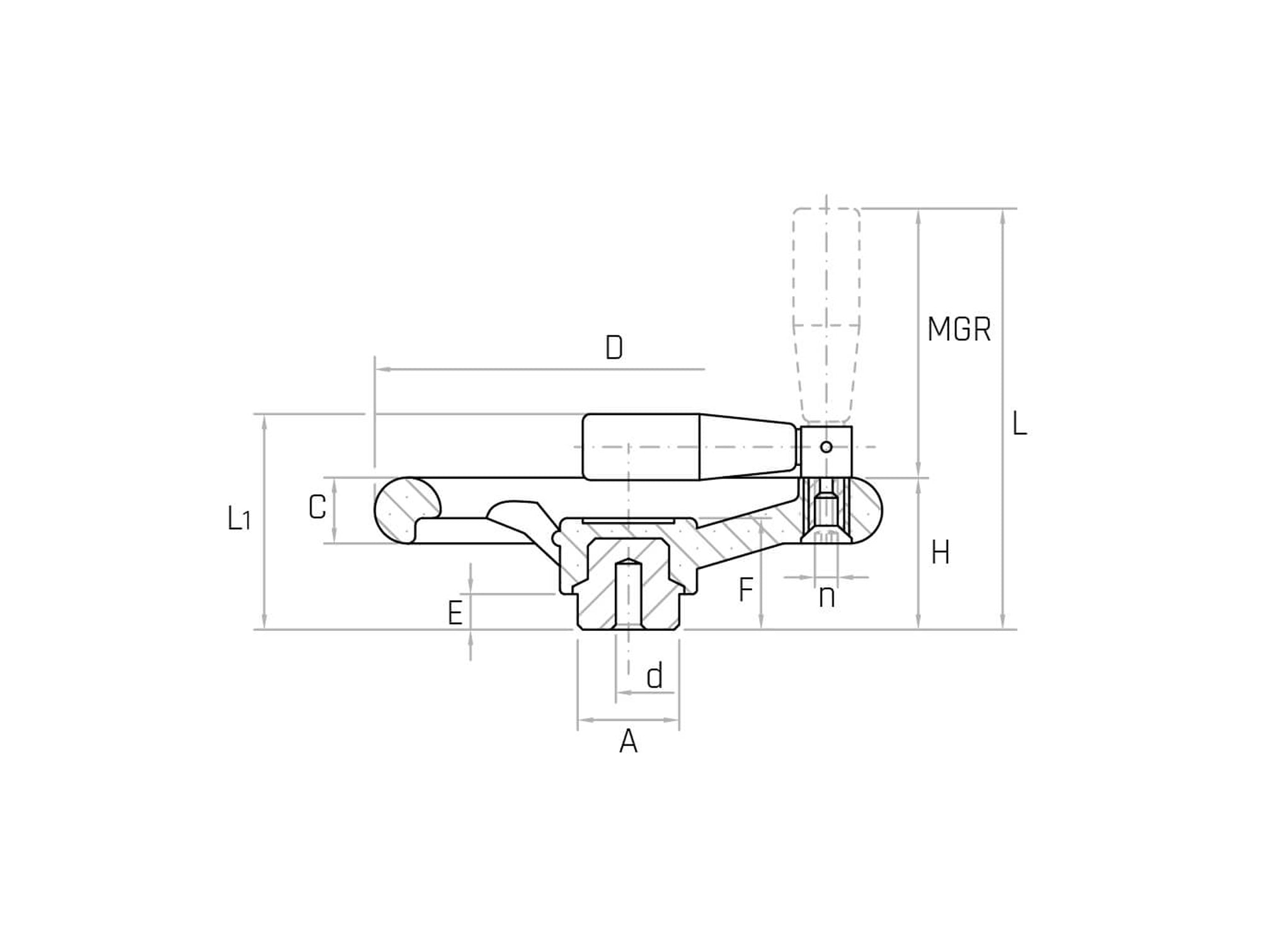

| VRF/MF Three-spoke handwheel with folding knob |
|---|

|
| Cod. | Model | D mm | H mm | The mm | L1 mm | C mm | In mm | d mm | And mm | F mm | MGR mm | n |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6222005 | VRF/125-MR | 125 | 46 | 118 | 66 | 17 | 24 | Ø6 | 13 | 37 | 23x55 | M5 |
| 6222010 | VRF/150-MR | 150 | 49 | 131 | 70 | 20 | 32 | Ø6 | 13 | 38 | 25x65 | M6 |
| 6222015 | VRF/175-MR | 175 | 56 | 138 | 77 | 22 | 40 | Ø6 | 16 | 42 | 25x65 | M6 |
| 6222020 | VRF/200-MR | 200 | 61 | 166 | 85 | 24 | 40 | Ø6 | 16 | 45 | 28x85 | M6 |
| 6222025 | VRF/250-MR | 250 | 72 | 177 | 96 | 28 | 48 | Ø8 | 17 | 50 | 28x85 | M6 |
| 6222030 | VRF/300-MR | 300 | 78 | 183 | 102 | 34 | 58 | Ø8 | 18 | 56 | 28x85 | M6 |
NOTE :

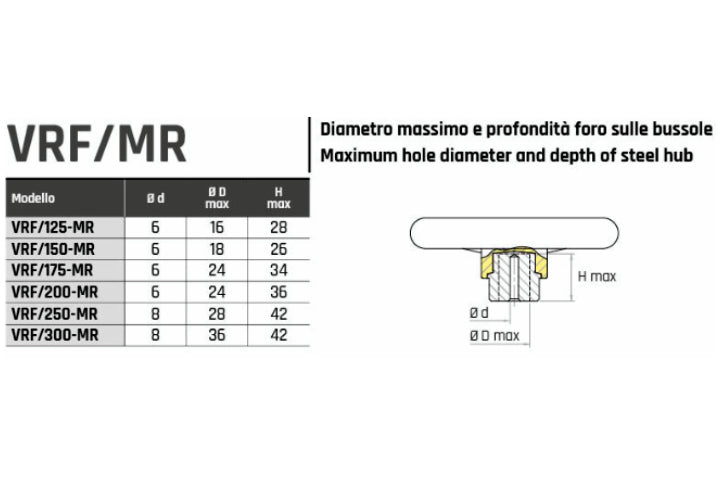

Blind hole that can be widened to the desired size. Handwheels with custom-drilled hubs are supplied for adequate quantities. The version with a snap-on revolving knob is recommended when, for reasons of space or safety, the knob must be folded back into the rest position.
