Gamm
MF - Handle with through hole for cylindrical head screw (Pack of 10 pcs) - Gamm
Ball knob with brass socket and blind threaded hole in black duroplast. Available in different sizes to suit mounting specifications, it offers excellent durability and resistance thanks to the high quality materials and compliance with REACH and RoHS regulations.
Product SKU: 6333150
€20,74
Pagamento dilazionato solo per acquisti online
Want it delivered by
Handles
Through hole for cylindrical head screw.
Material
Technopolymer, reinforced with glass fibres, matt finish.
| MF - Handle with through hole for cylindrical head screw |
|---|

|
| Code RAL 9005 |

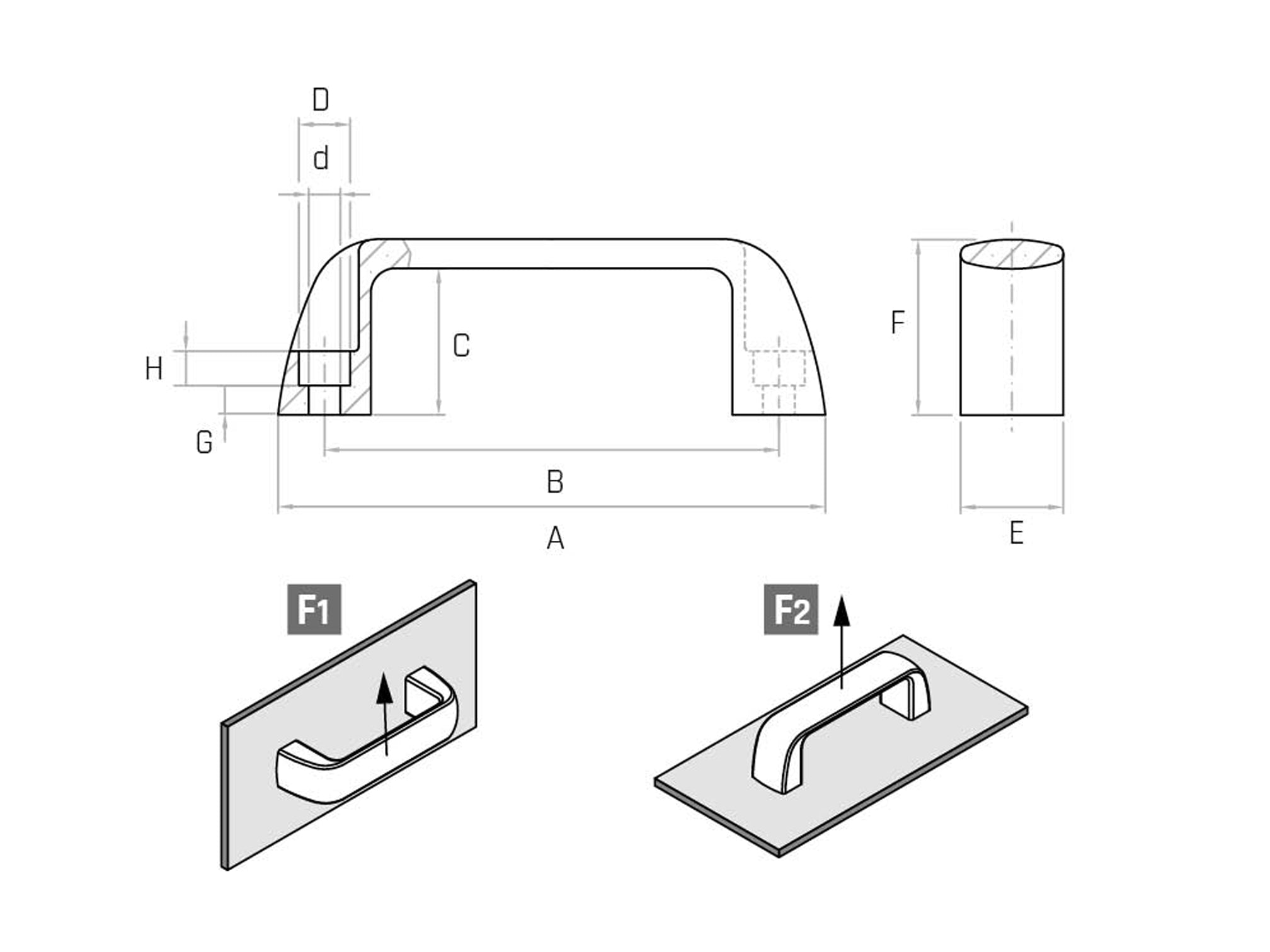

Model | B mm | In mm | And mm | F mm | C mm | G mm | H mm | D mm | d mm | F1 N | F2 N | Weight gr. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6333150 | MF/93,5 Ø6,5 | 93.5±0.5 | 113 | 23 | 36 | 29 | 6 | 7 |
Ø10,2 | Ø6,5 | 4000 | 3000 | 26 |
| 6333105 | MF/117 Ø6,5 | 117±1 | 139 | 24.5 | 41 | 34 | 6 | 9 |
Ø10,2 | Ø6,5 | 3000 | 3000 | 41 |
| 6333105 | MF/117 Ø6,5 | 117±1 | 139 | 24.5 | 41 | 34 | 6 | 9 |
Ø10,2 | Ø6,5 | 3000 | 3000 | 41 |
| 6333100 | MF/117 Ø8,5 | 117±1 | 139 | 24.5 | 41 | 34 | 6 | 7 |
Ø13,0 | Ø8,5 | 3000 | 3000 | 40 |
| 6333200 | MF/132 Ø6,5 | 132±1 | 156 | 27 | 45 | 37 | 9 | 7 |
Ø10,2 | Ø6,5 | 4000 | 3500 | 56 |
| 6333210 | MF/132 Ø8,5 | 132±1 | 156 | 27 | 45 | 37 | 7 | 9 |
Ø13,0 | Ø8,5 | 4000 | 3500 | 54 |
| 6333220 | MF/179 Ø8,5 | 179±1 | 204 | 28 | 50 | 42 | 8 | 9 |
Ø13,0 | Ø8,5 | 3000 | 3500 | 72 |
