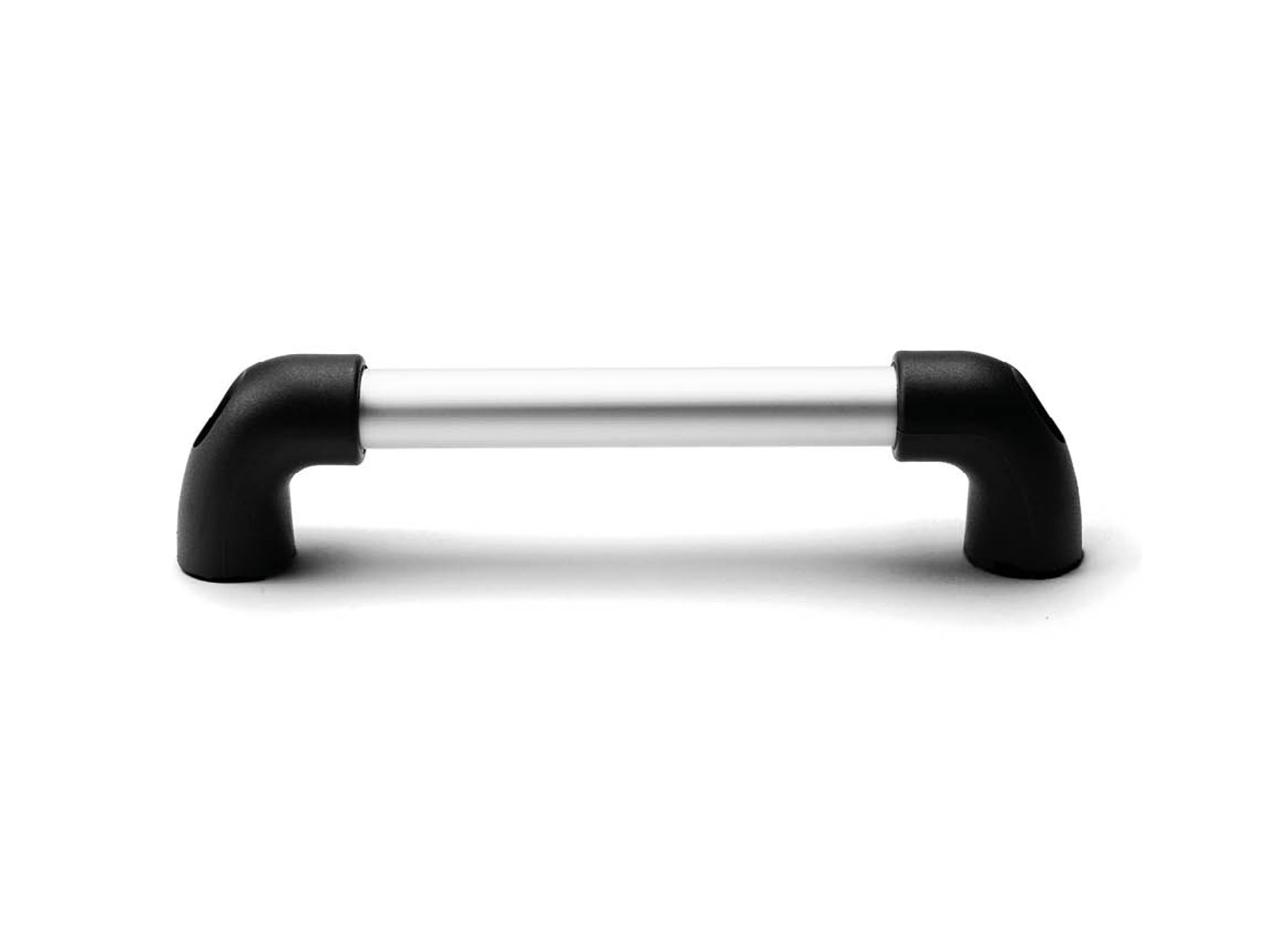

MTR - Handle with through hole (Pack of 2) - Gamm
Handles with through hole, made with black technopolymer terminals reinforced with glass fibers and 2 mm metallic gray aluminum tube. Available in various sizes (from 200 mm to 600 mm in length), they guarantee solidity and resistance. Compliant with REACH and RoHS regulations, these handles are ideal for industrial and professional applications.
Product SKU: 6321100
€21,06
Pagamento dilazionato solo per acquisti online
Want it delivered by
Handles
Through hole.
Material
Terminals in black technopolymer, reinforced with glass fibres.
Metallic grey aluminium tube, 2 mm thick.
| MS - Handle with brass socket and threaded blind hole |
|---|

|
| Code RAL 9005 |

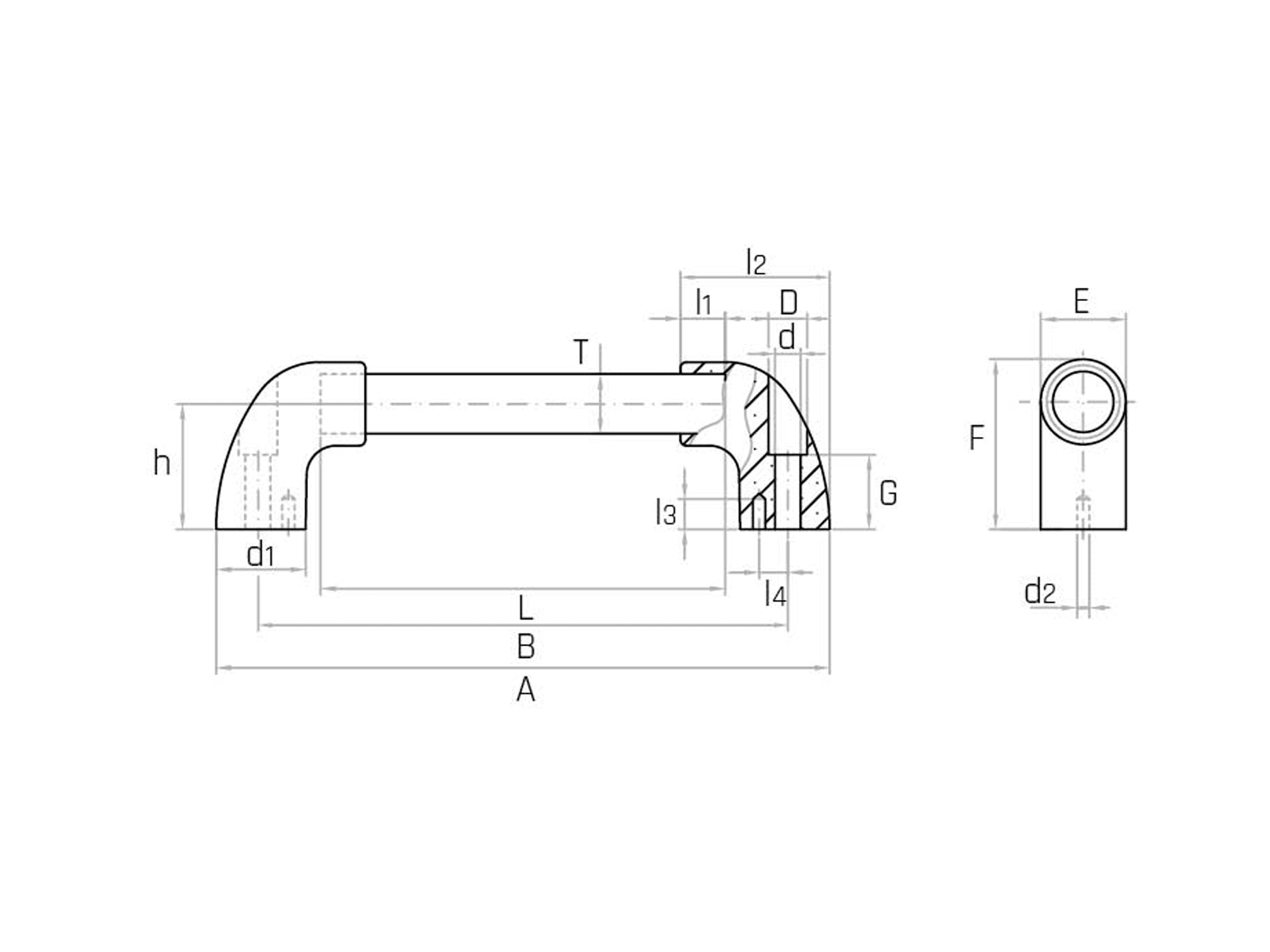

Model | T mm | The mm | B mm | In mm | F mm | l1 mm | G mm | D mm | d mm | d1 mm | h mm | l2 mm | And mm | d2 mm | l3 mm | l4 mm | Weight gr. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6321100 | MTR20-200 | 20 | 158 | 200 | 228 | 56 | 15 | 25 | Ø13 | Ø8,5 | 30 | 42 | 50 | 28 | - | - | - | 123 |
| 6321120 | MTR20-300 | 20 | 258 | 300 | 328 | 56 | 15 | 25 | Ø13 | Ø8,5 | 30 | 42 | 50 | 28 | - | - | - | 152 |
| 6321140 | MTR20-400 | 20 | 358 | 400 | 428 | 56 | 15 | 25 | Ø13 | Ø8,5 | 30 | 42 | 50 | 28 | - | - | - | 184 |
| 6321150 | MTR20-500 | 20 | 458 | 500 | 528 | 56 | 15 | 25 | Ø13 | Ø8,5 | 30 | 42 | 50 | 28 | - | - | - | 218 |
| 6321160 | MTR20-600 | 20 | 558 | 600 | 628 | 56 | 15 | 25 | Ø13 | Ø8,5 | 30 | 42 | 50 | 28 | - | - | - | 247 |
| 6321205 | MTR30-300 | 30 | 236 | 300 | 342 | 81 | 22 | 40 | Ø17 | Ø10,5 | 44 | 60 | 75 | 42 | 4 | 15 | 18 | 360 |
| 6321215 | MTR30-400 | 30 | 336 | 400 | 442 | 81 | 22 | 40 | Ø17 | Ø10,5 | 44 | 60 | 75 | 42 | 4 | 15 | 18 | 412 |
| 6321225 | MTR30-500 | 30 | 436 | 500 | 542 | 81 | 22 | 40 | Ø17 | Ø10,5 | 44 | 60 | 75 | 42 | 4 | 15 | 18 | 455 |
| 6321235 | MTR30-600 | 30 | 536 | 600 | 642 | 81 | 22 | 40 | Ø17 | Ø10,5 | 44 | 60 | 75 | 42 | 4 | 15 | 18 | 521 |
