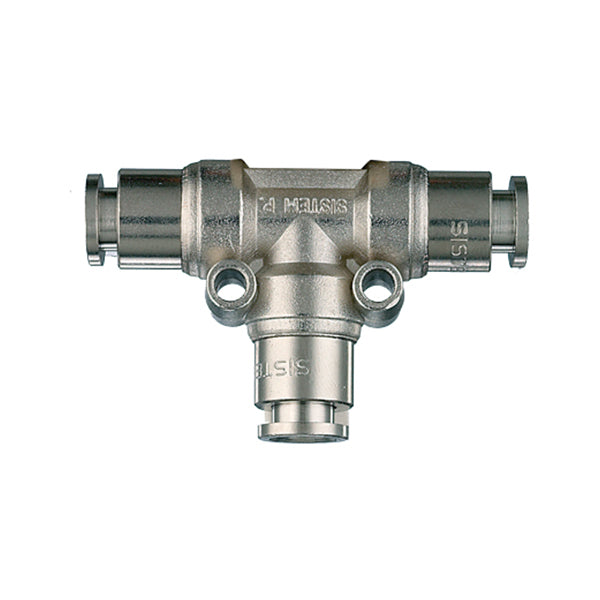

INTERMEDIATE “T” CONNECTOR
Series 50 – Metal Quick Connect Fittings
| 50/DI - INTERMEDIATE |
|---|
|
| Code | Mod. | TO | B | C | D | AND | F | G |
|---|---|---|---|---|---|---|---|---|
| AH033201 | 50/DI | Ø 4 | 10 | 19.5 | 12 | 6 | 2.7 | 4 |
| AH033202 | 50/DI | Ø 6 | 13 | 23.5 | 16 | 8 | 3.2 | 6 |
| AH033203 | 50/DI | Ø 8 | 15 | 26 | 18 | 9 | 3.2 | 8 |
| AH033204 | 50/DI | Ø 10 | 17.5 | 29 | 22 | 11 | 4.2 | 10 |
| AH033205 | 50/DI | Ø 12 | 21.5 | 31 | - | - | - | 12 |
FIELDS OF USE : Pneumatic circuits.
OPERATING PRESSURE : The maximum operating pressure is determined by the characteristics of the tube used. Maximum pressure 16 bar (1.6 MPa)
WORKING TEMPERATURE : -10°C (263°K) ÷ +80°C (353°K). • TYPES OF CONNECTABLE HOSES: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0.05 (ø 4÷ø10) - ±0.1 (ø12 ÷ ø 14).
MATERIALS USED : Nickel-plated brass (UNI EN 12164 CW 614N), ZAMA-15
Nickel plated (UNI EN 1774:99).
O-RINGS/SEALS : Silicone-free NBR oil-resistant rubber seals
THREAD : Conical gas with PTFE (ISO 7 (BSPT) -DIN 2999 - BS 21),
Gas cylindrical - ISO 228 (BSPP)
The products comply with Directive 2002/95/EC - RoHS Directive.
