50/Y - INTERMEDIATE "Y" fitting - METAL quick couplings - Fittings - Ani (Pack of 10pcs)
Pagamento dilazionato solo per acquisti online

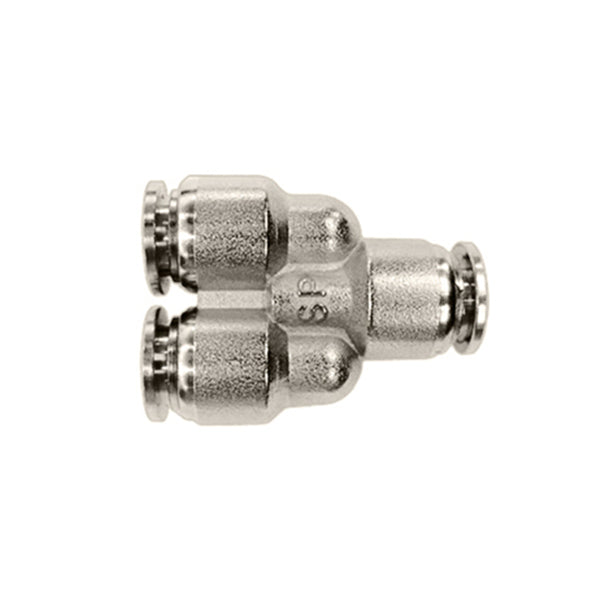

INTERMEDIATE “Y” CONNECTOR
Series 50 – Metal Quick Connect Fittings
| 50/Y - INTERMEDIATE |
|---|
|
| Code | Mod. | TO | B | C | D | AND |
|---|---|---|---|---|---|---|
| AH0393201A | 50/Y | ø 4 | 4 | 31 | 11 | 11 |
| AH0393202A | 50/Y | ø 6 | 6 | 34 | 15 | 13 |
| AH0393203A | 50/Y | ø 8 | 8 | 39 | 17 | 15 |
FIELDS OF USE : Pneumatic circuits.
OPERATING PRESSURE : The maximum operating pressure is determined by the characteristics of the tube used. Maximum pressure 16 bar (1.6 MPa)
WORKING TEMPERATURE : -10°C (263°K) ÷ +80°C (353°K). • TYPES OF CONNECTABLE HOSES: RILSAN (PA11/12), POLYURETHANE, POLYETHYLENE, POLYESTER, PTFE, NYLON (PA6): ±0.05 (ø 4÷ø10) - ±0.1 (ø12 ÷ ø 14).
MATERIALS USED : Nickel-plated brass (UNI EN 12164 CW 614N), ZAMA-15
Nickel plated (UNI EN 1774:99).
O-RINGS/SEALS : Silicone-free NBR oil-resistant rubber seals
THREAD : Conical gas with PTFE (ISO 7 (BSPT) -DIN 2999 - BS 21),
Gas cylindrical - ISO 228 (BSPP)
The products comply with Directive 2002/95/EC - RoHS Directive.
