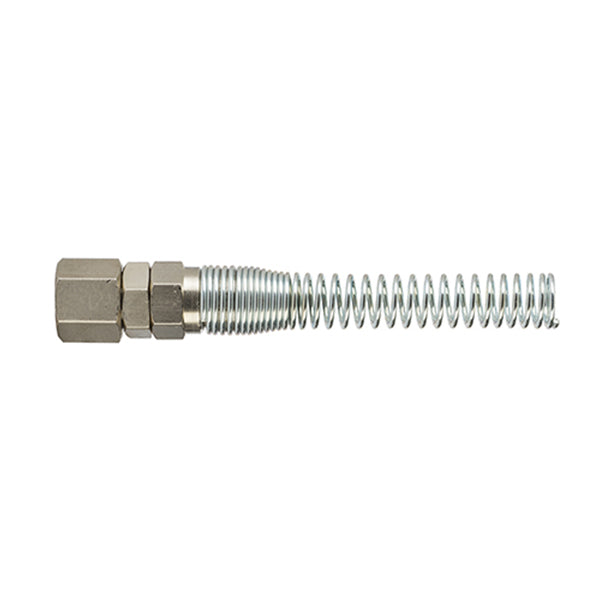

FEMALE SWIVEL CONNECTOR WITH SPRING
Universal automatic tap with spring - Cylindrical female ISO 228 (BSPP) • MF = Swivel
| 62/MG - FEMALE SWIVEL CONNECTOR |
|---|
| Code | Mod. | F | Of X Of | f | THE | L1 | P1 |  |
 |
|---|---|---|---|---|---|---|---|---|---|
| AH034229 | 62/MG | 1/4F | Ø 4x6 | Ø 2.5 | 81 | 52 | 11 | 15 | 14 |
| AH034208 | 62/MG | 1/4F | Ø 5x8 | Ø 3.5 | 99 | 70 | 11 | 15 | 14 |
| AH034203 | 62/MG | 1/4F | Ø 6x8 | Ø 4.5 | 99 | 70 | 11 | 15 | 14 |
| AH034209 | 62/MG | 3/8F | Ø 5x8 | Ø 3.5 | 99.5 | 70 | 11.5 | 19 | 14 |
| AH034222 | 62/MG | 3/8F | Ø 6x8 | Ø 4.5 | 99.5 | 70 | 11.5 | 19 | 14 |
FIELDS OF USE : Pneumatic, hydraulic and oleodynamic circuits.
CONNECTING TUBES : Plastic tubes in Polyurethane (PU) Polyethylene (PE) Polyamide (PA-PA11/12) - Polyester (PET) - BRAIDED PVC - PTFE – FEP….;
OPERATING PRESSURE : Maximum recommended pressure 18 bar.
TEMPERATURE : The temperature is determined by the characteristics of the tube used.
MATERIALS USED : Body/locking nut: Nickel-plated brass (UNI EN 12164 CW
614N).. Springs: C85 harmonic steel.
O-RINGS/SEALS : Silicone-free NBR oil-resistant rubber seals
SURFACE TREATMENT : Nickel plating
THREAD : Gas cylindrical - ISO 228 (BSPP)
