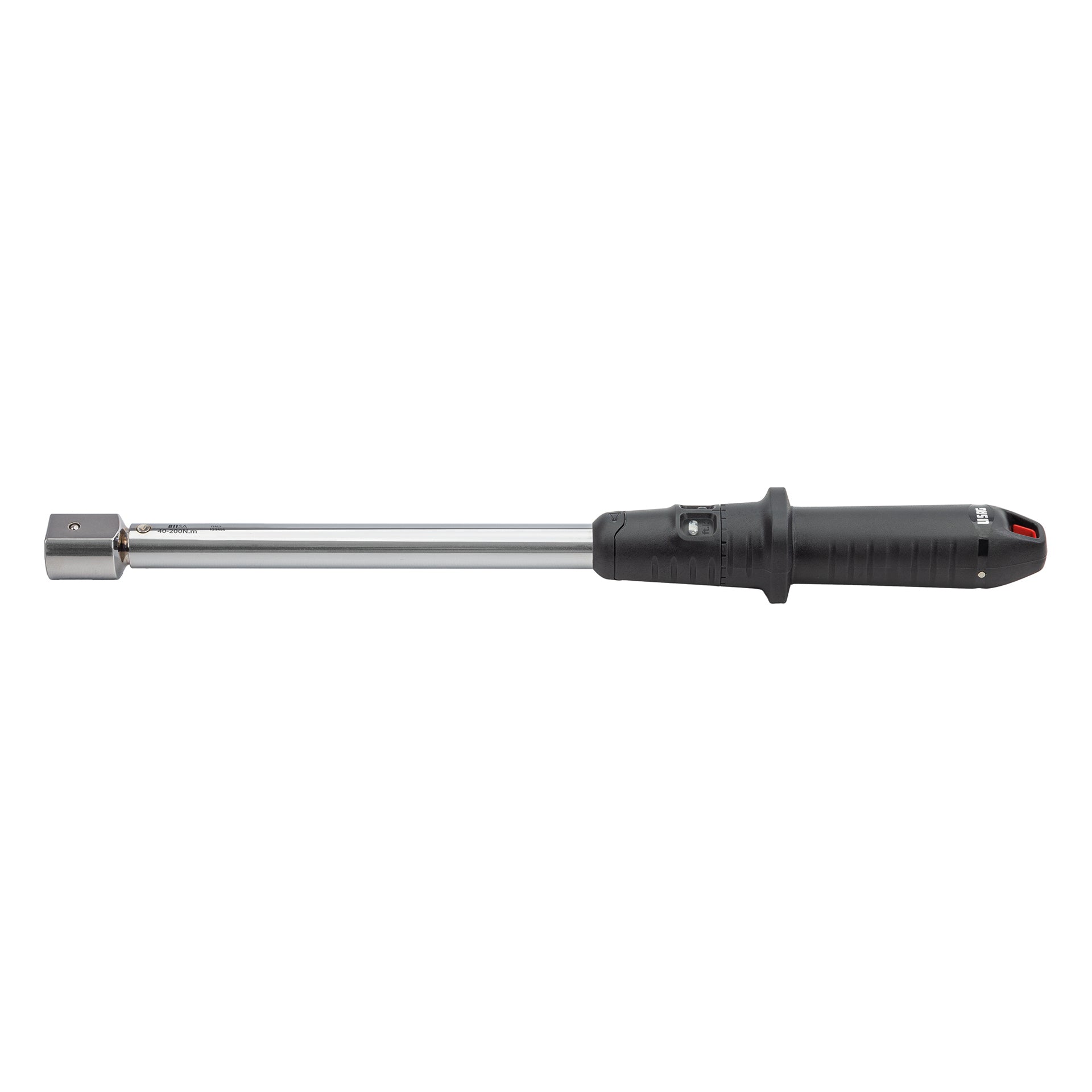

811 SA - Direct reading dynamometer bars - Usag
811 SA - Usag direct reading torque bars, compliant with ISO 6789. Equipped with a snap-action mechanism and automatic reset, usable with 811 series inserts and 9x12 or 14x18 mm attachments. Accuracy of ±4% of the set torque value and direct torque reading system for right- and left-hand tightening. Made of steel tube and ergonomic handle resistant to oils and chemicals. Supplied in a tubular plastic case with calibration certificate and REACH declaration.
Product SKU: U08115002
€233,02
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
DIRECT READING DYNAMOMETRIC BARS
| 811 SA |
|---|
 |
ISO 6789
- Snap-on torque bar
- Model without ratchet that can be used in combination with the 811 series inserts
- 9x12 or 14x18 mm attachments
- Automatic reset: after the shot it is immediately ready for use
- Adjustable torque for right and left-hand tightening
- Accuracy ±4% of the set torque value
- Direct reading system: the required torque value is immediately visible
- Compression spring mechanism
- Steel tube to protect the internal mechanism
- Double Nm/ft.lb reading scale
- Ergonomic handle with soft touch effect and resistant to oils and chemical agents
- Anti-roll square adjustment ring
- Supplied in a plastic tubular case
- Includes calibration certificate and REACH declaration (SVHC)
| Code | Capacity Nm | Resolution Nm |  Rectangular male connection mm
|
The mm |
|---|---|---|---|---|
| U08115002 | 10÷50 | 0.25 | 9x12 | 335 |
| U08115003 | 20÷100 | 0.25 | 9x12 | 395 |
| U08115004 | 40÷200 | 0.5 | 14x18 | 460 |
| U08115006 | 68÷340 | 1 | 14x18 | 615 |
