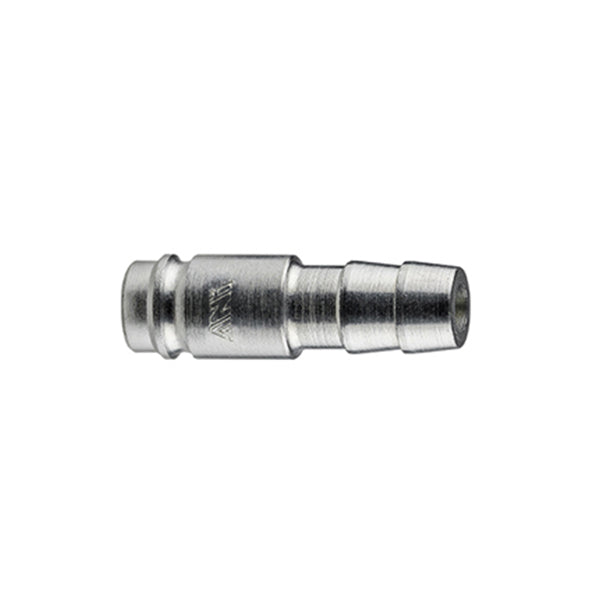

90-4 - GIANT quick coupling with RESCA - Fittings - Ani - Compressed air (Pack of 5 pieces)
The Series 90 giant quick coupling with barb is designed for robust and safe pneumatic connections. Constructed from carbonitrided and zinc plated steel with nickel plated brass components, it offers corrosion resistance and durability over time. This coupling is compatible exclusively with "90-R" series taps and supports operating pressures up to 16 bar, with an operating temperature ranging from -15°C to +80°C. The integrated barb improves grip for high intensity applications, with a flow rate of 4000 l/min at 6 bar.
Product SKU: AT020610
€16,90
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
GIANT QUICK CONNECTOR WITH BARB
Series 90 – Giant Taps and Fittings
• Carbonitrided and zinc-plated steel/Nickel-plated brass • Compatible only with “90-R” series taps
| 90-4 - GIANT with RESCA |
|---|
|
| Code | Mod. | F | f | P | THE |
|---|---|---|---|---|---|
| AT020610 | 90-4 | Ø 10 | Ø 6 | 24 | 48 |
| AT020611 | 90-4 | Ø 13 | Ø 7 | 24 | 48 |
| AT020612 | 90-4 | Ø 16 | Ø 10.5 | 24 | 48 |
| AT020613 | 90-4 | Ø 19 | Ø 13.5 | 24 | 48 |
Giant quick ball valve in galvanized steel with anti-release safety device.
• Anti-release safety
• Cap and body in galvanized steel
COMPATIBILITY : Atlas Copco QIC 15 SE, ErgoQIC 15E - CEJN 410 - LEGRIS 27
PARKER 55 - RECTUS 27 - TEMA 1700
FIELDS OF USE : Pneumatic circuits.
OPERATING PRESSURE : 0 ÷ 16 bar (232 psi).
WORKING TEMPERATURE : -15°C (258°K) ÷+80°C (353°K).
NOMINAL DIAMETER : 10.5 mm.
FLOW RATE AT 6 bar: 4000 l/min (141.3cfm).
MATERIALS USED : Galvanized steel (11SmnPb37 UNI EN 10277-3), Nickel-plated brass (UNI EN 12164 CW 614N).
O-RINGS/SEALS : NBR rubber seals.
THREAD : Gas conical ISO 7 (BSPT) - DIN 2999 - BS 21), Gas cylindrical - ISO 228 (BSPP).
• Anti-release safety
• Cap and body in galvanized steel
COMPATIBILITY : Atlas Copco QIC 15 SE, ErgoQIC 15E - CEJN 410 - LEGRIS 27
PARKER 55 - RECTUS 27 - TEMA 1700
FIELDS OF USE : Pneumatic circuits.
OPERATING PRESSURE : 0 ÷ 16 bar (232 psi).
WORKING TEMPERATURE : -15°C (258°K) ÷+80°C (353°K).
NOMINAL DIAMETER : 10.5 mm.
FLOW RATE AT 6 bar: 4000 l/min (141.3cfm).
MATERIALS USED : Galvanized steel (11SmnPb37 UNI EN 10277-3), Nickel-plated brass (UNI EN 12164 CW 614N).
O-RINGS/SEALS : NBR rubber seals.
THREAD : Gas conical ISO 7 (BSPT) - DIN 2999 - BS 21), Gas cylindrical - ISO 228 (BSPP).
