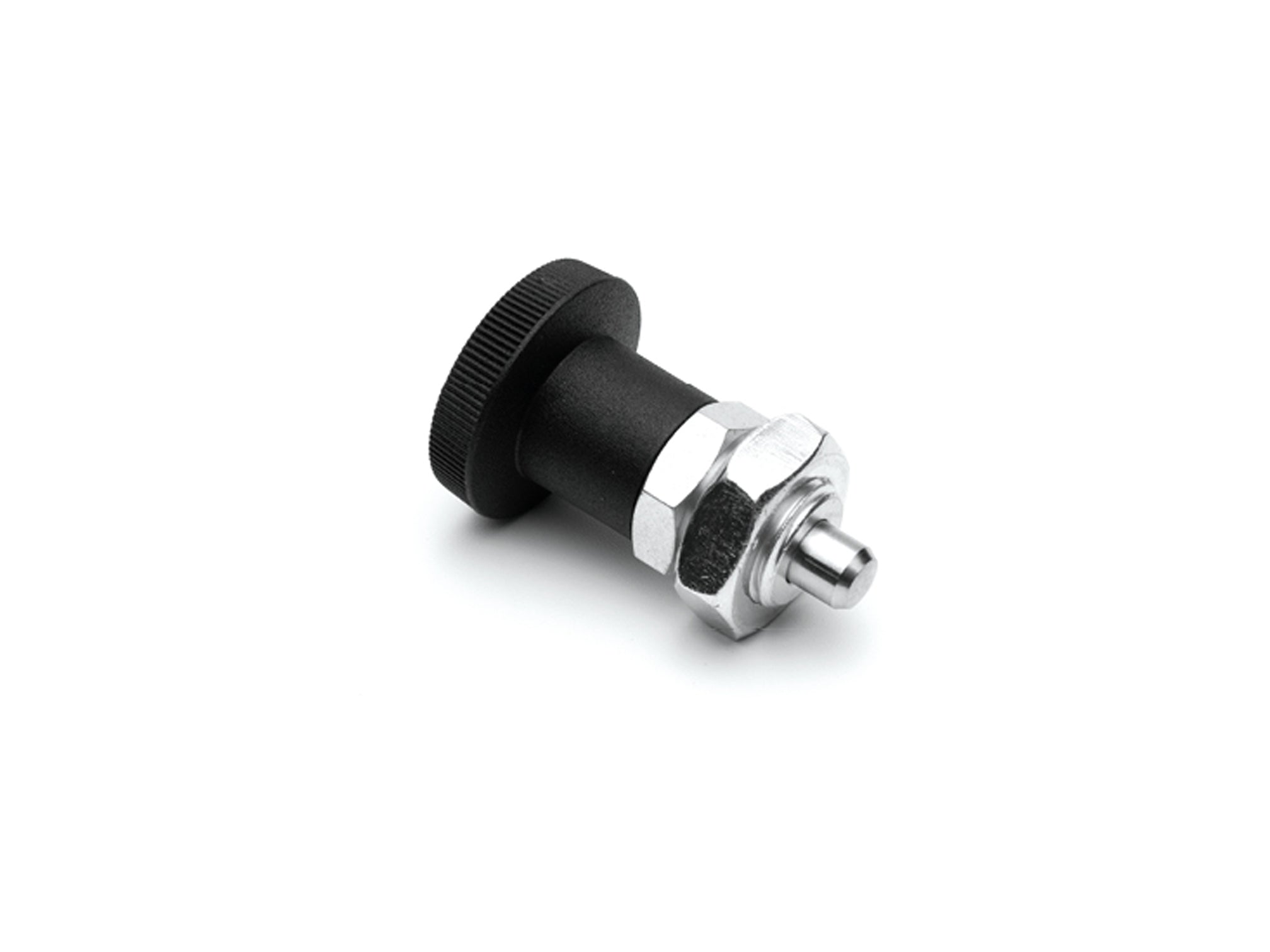

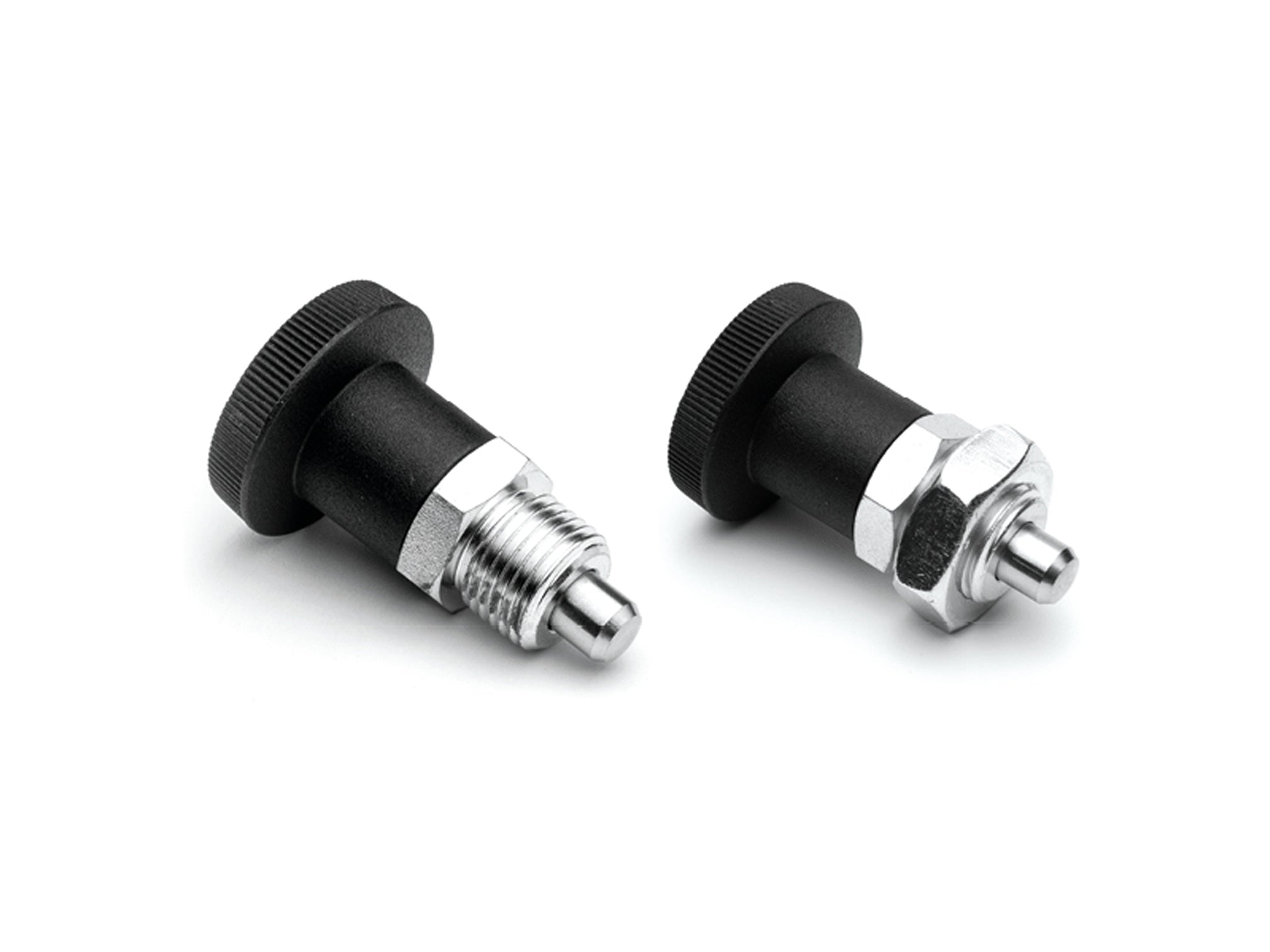

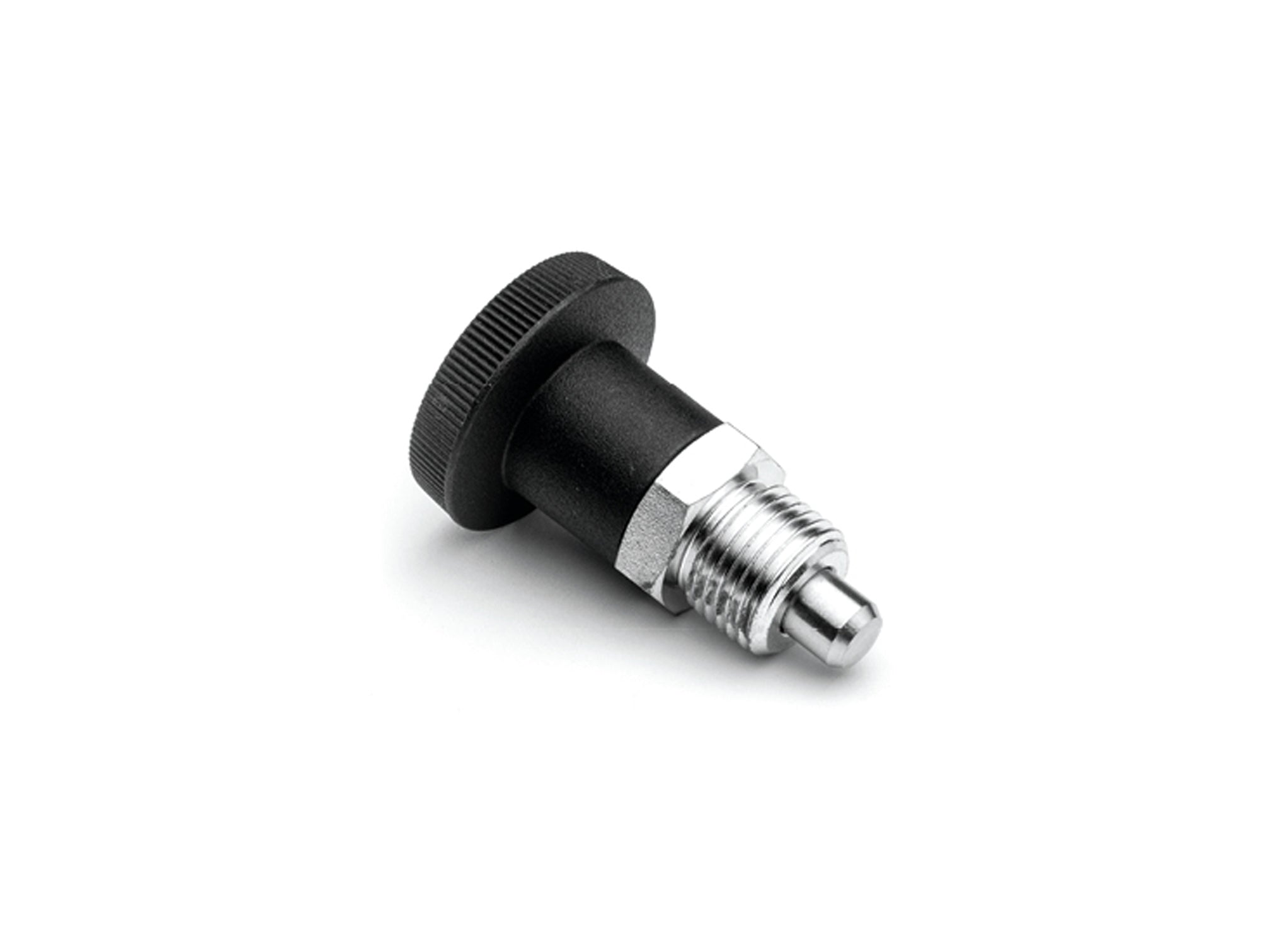

Spring plunger with steel tip - model PRA and PRA/C - Range
The PRA and PRA/C spring plungers have a zinc-plated steel body and tip with a locking position. The knurled handwheel is made of black, glass-fiber-reinforced technopolymer with a matte finish. Dimensions include M12x1. 5 and M16x1. 5 threads, with diameters ranging from 26 mm to 32 mm. Weights range from 29 g to 75 g. The PRA/C version includes a zinc-plated steel locknut.
Product SKU: 6394810
€13,91
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
Pistons and pressers
Spring plunger , zinc-plated steel body, threaded, with locking position. Zinc-plated steel tip
Material
Knurled knob in black technopolymer, reinforced with glass fibres, matt finish.
| PRA and PRA/C - Spring piston with steel tip |
|---|

|

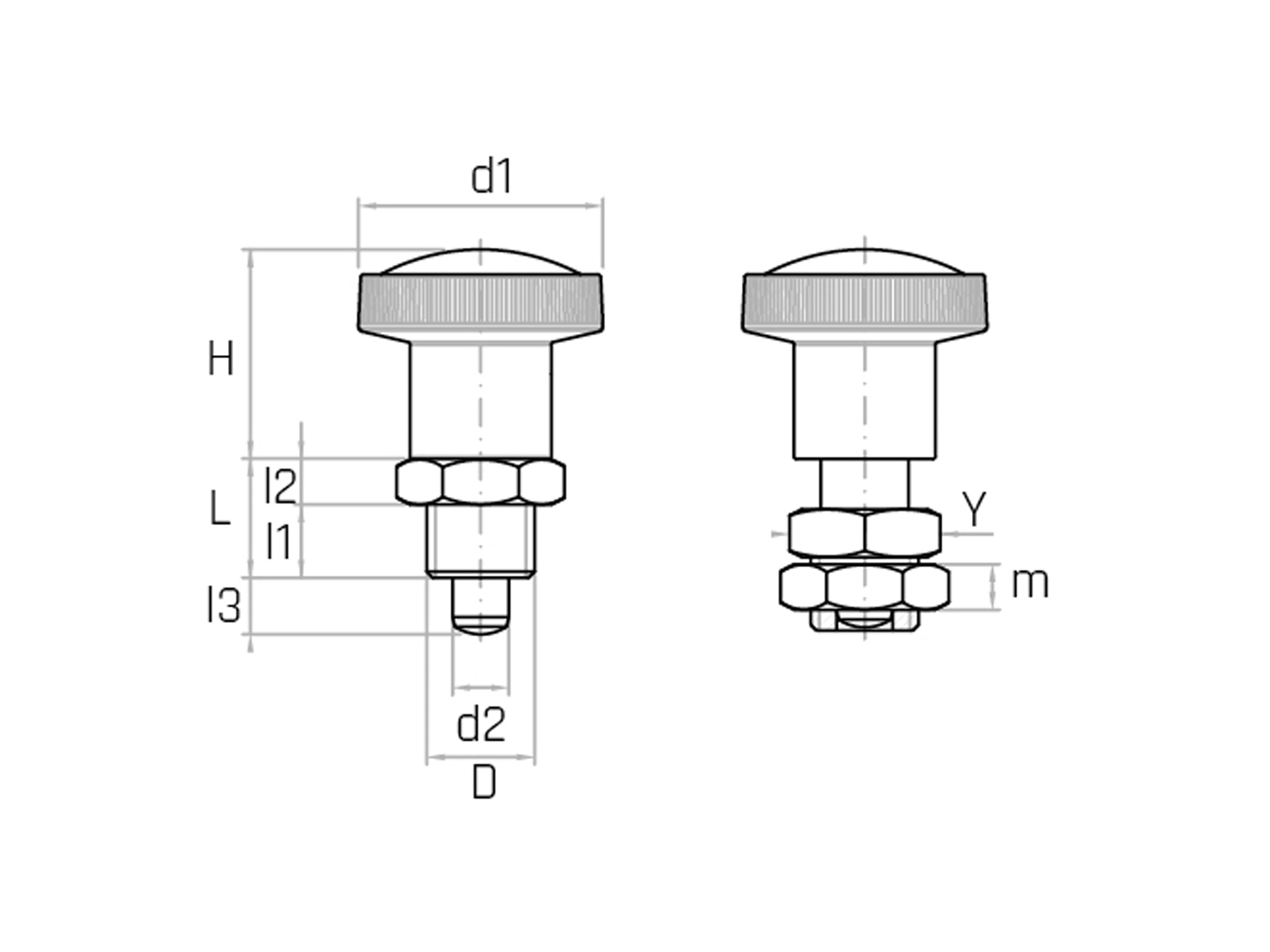

| Code | Model | d1 mm | H mm | D | The mm | l1 mm | l2 mm | l3 mm | d2 mm | Y mm | m mm | Weight gr. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6394810 | PRA/26 | 26 | 23 | M12x1.5 | 15 | 10 | 5 | 6 | 6 | 16 | - | 29 |
| 6394815 | PRA/32 | 32 | 28 | M16x1.5 | 18 | 12 | 6 | 8 | 8 | 19 | - | 57 |
| 6394811 | PRA/26/C | 26 | 23 | M12x1.5 | 15 | 10 | 5 | 6 | 6 | 16 | 7 | 38 |
| 6394816 | PRA/32/C | 32 | 28 | M16x1.5 | 18 | 12 | 6 | 8 | 8 | 19 | 8 | 75 |
NOTE : Version C with zinc-plated steel lock nut.
