Gamm

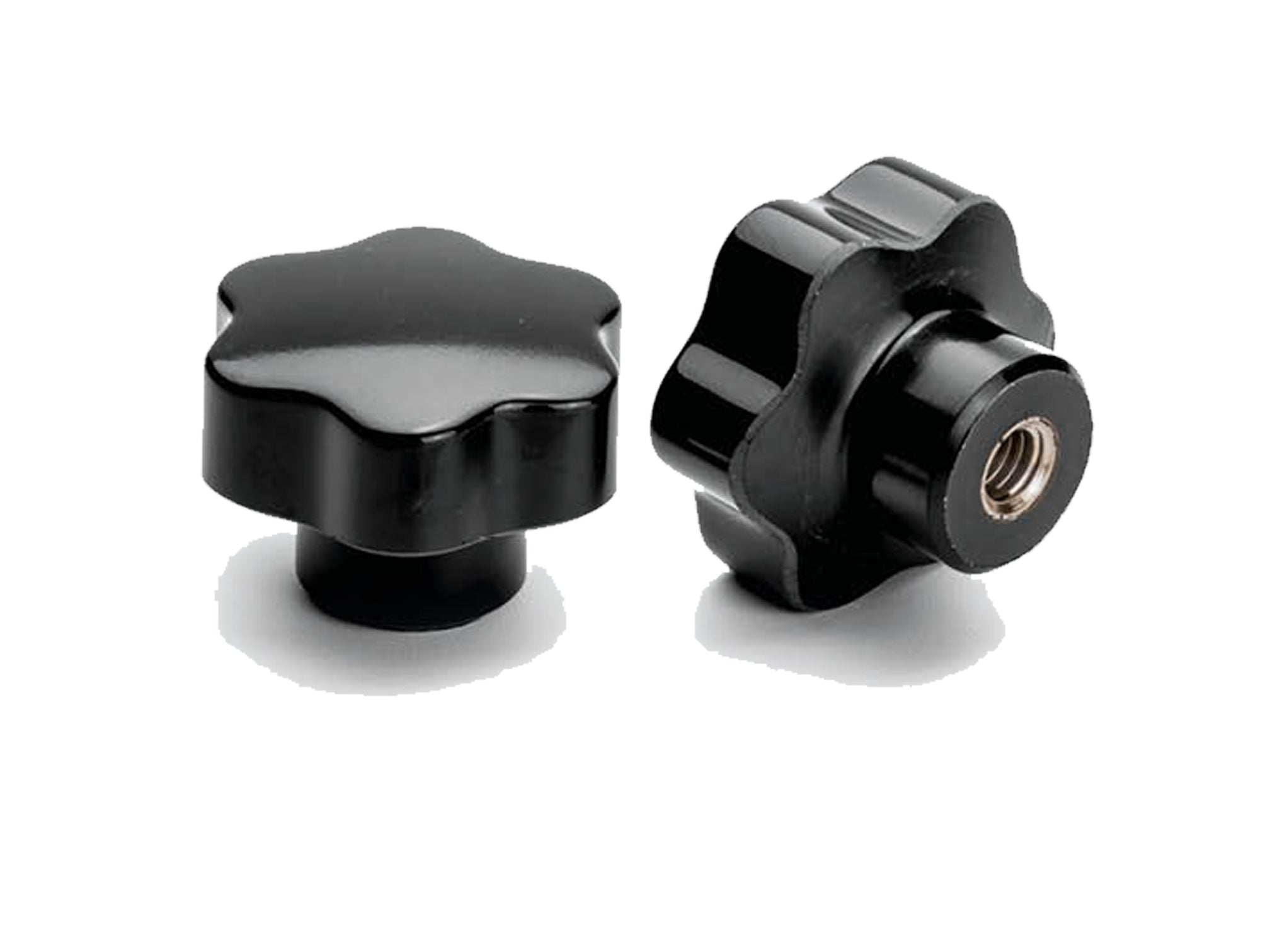

VBX - Six-lobe handwheel with STAINLESS STEEL SOCKET (Pack of 10pcs and 6pcs) - Gamm
Locking handwheels with AISI 303 stainless steel bush and threaded blind hole. Made of heat-resistant black duroplast, with Phenolite™ material (PF Phenolformaldehyde). Available with diameters from 20 mm to 60 mm and threads from M5 to M12, they comply with REACH and RoHS regulations. Ideal for industrial applications that require robustness and reliability.
Product SKU: 6157005
€34,53
(IVA/VAT incl.)
Pagamento dilazionato solo per acquisti online
Want it delivered by
Locking Flyers
AISI 303 stainless steel compass and threaded blind hole.
Material
Black Duroplast

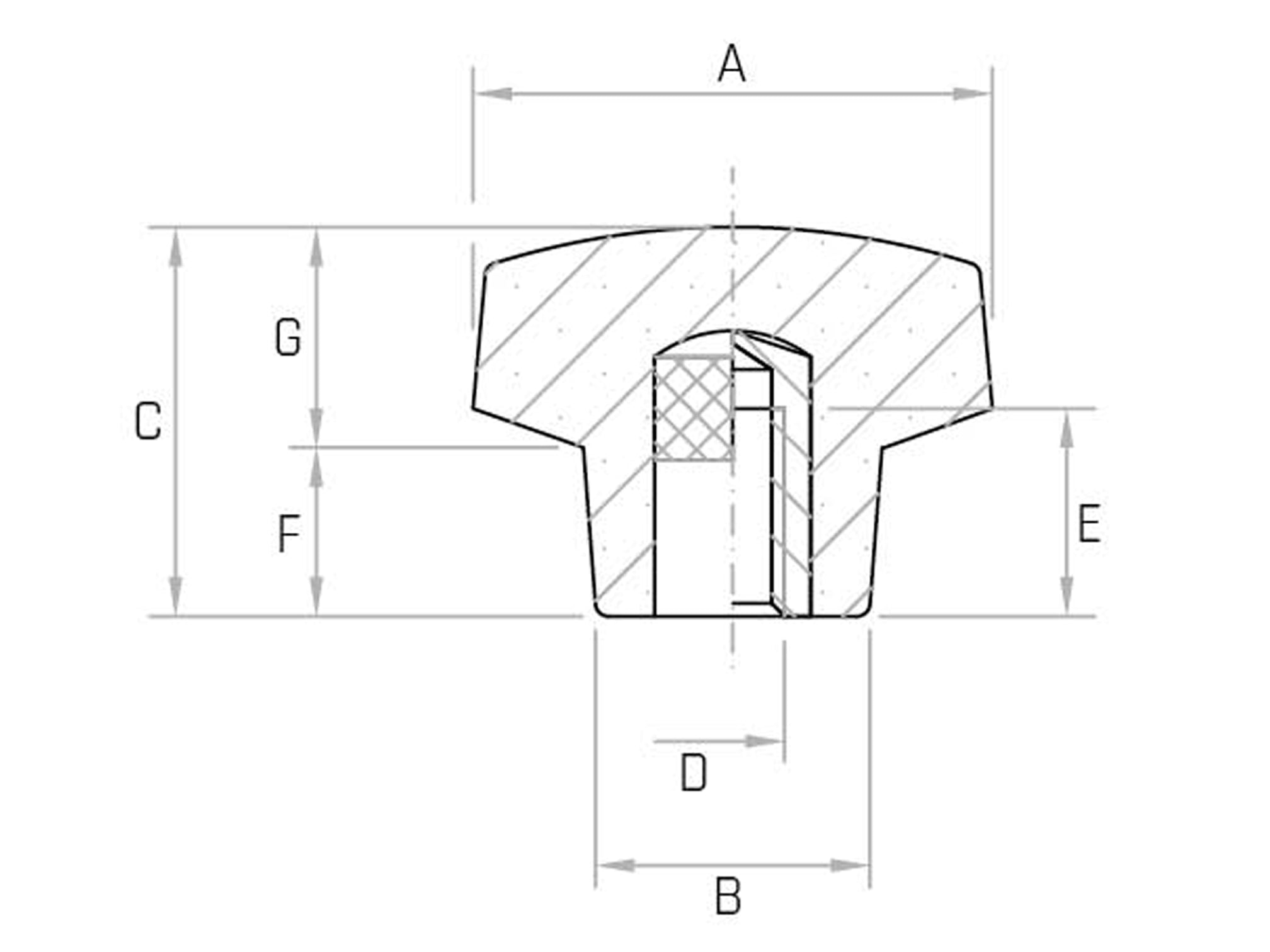

| VBX - Six-lobe handwheel with stainless steel bushing |
|---|

|
| Code | Model | In mm | B mm | C mm | D | And mm | F mm | G mm | Weight gr. |
|---|---|---|---|---|---|---|---|---|---|
| 6157005 | VBX/20 M5 | 20 | 13 | 15 | M5 | 9 | 7 | 8 | 5 |
| 6157010 | VBX/20 M6 | 20 | 13 | 15 | M6 | 9 | 7 | 8 | 5 |
| 6157020 | VBX/30 M6 | 30 | 17 | 24 | M6 | 9 | 11 | 13 | 15 |
| 6157030 | VBX/40 M6 | 40 | 21 | 28 | M6 | 13 | 12 | 16 | 34 |
| 6157040 | VBX/40 M8 | 40 | 21 | 28 | M8 | 15 | 12 | 16 | 33 |
| 6157050 | VBX/50 M8 | 50 | 25 | 33 | M8 | 15 | 13 | 20 | 54 |
| 6157060 | VBX/50 M10 | 50 | 25 | 33 | M10 | 16 | 13 | 20 | 55 |
| 6157080 | VBX/60 M12 | 60 | 28 | 37 | M12 | 18 | 15 | 22 | 85 |
